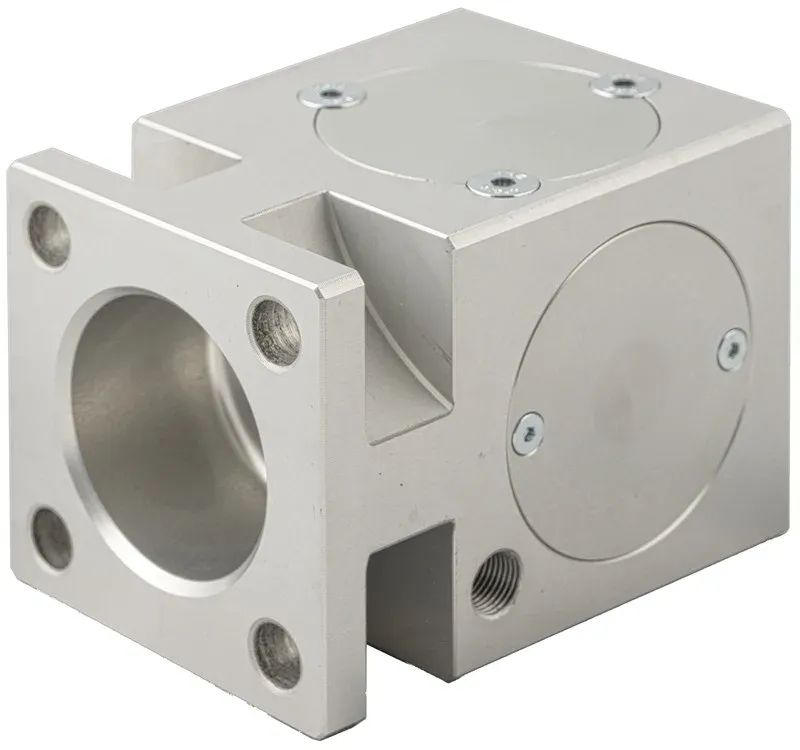

PISTON ROD LOCK - ALUMINIUM

Filter

VRL

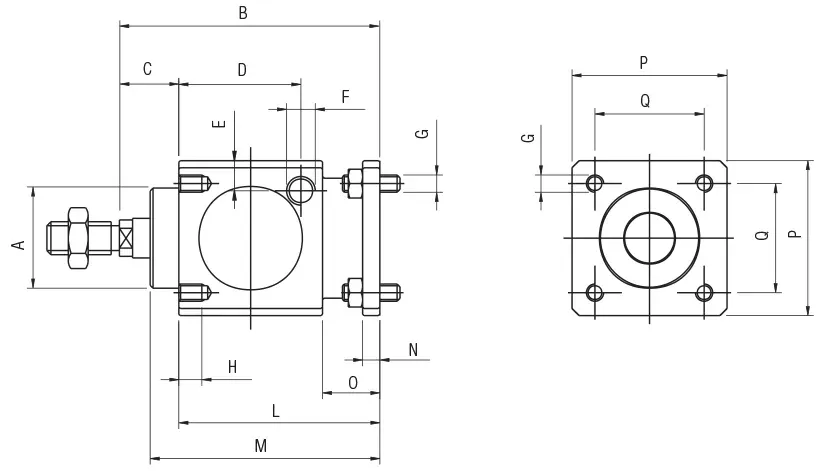

Code	3D Drawings	Ø	A	B	C	D	E	F	G	H	L	M	N	O	P	Q
VRL 032	Request access	32	30	86	26	33.25	9	1/8"G	M6	8	60	67,5	6	20	47	32,5
VRL 040	Request access	40	34,5	100	30	42.5	9	1/8"G	M6	8	70	80	6	20	54	38
VRL 050	Request access	50	40	127	37	58	12,5	1/8"G	M8	12	90	100	8	24	65	46,5
VRL 063	Request access	63	45	127	37	59	17,5	1/8"G	M8	12	90	100	8	24	75	56,5
VRL 080	Request access	80	45	156	46	69	17,5	1/4"G	M10	16	110	120	12	32	95	72
VRL 100	Request access	100	55	161	51	69	20	1/4"G	M10	16	110	120	12	32	114	89
VRL 125	Request access	125	60	205	65	84.5	19	1/4"G	M12	20	140	156	20	45	138	110
