55960

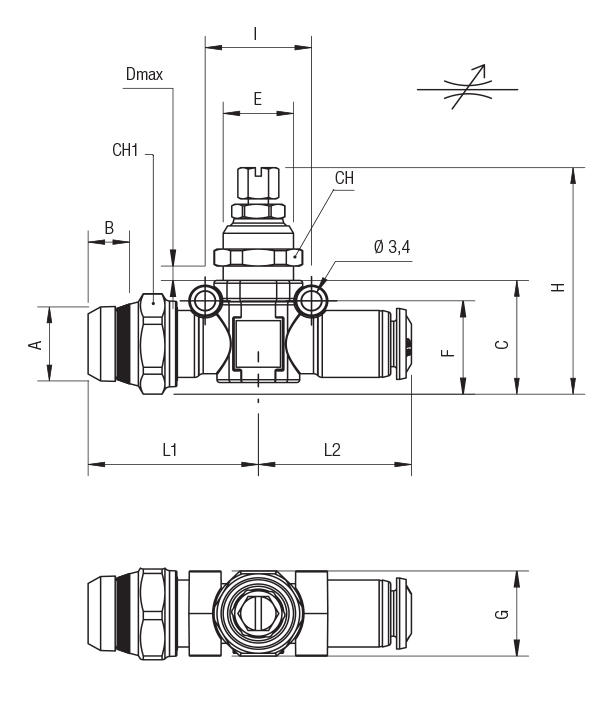

MALE “UNIVERSAL SHORT” - TUBE IN-LINE FLOW CONTROL (BI-DIRECTIONAL FLOW)
|
Code |
3D Drawings |
Tube |
A |
B |
C |
D |
E |
F |
G |
H |
I |
L1 |
L2 |
CH |
CH1 |
Bag |
|
55960 00 007
|
-
Request access
|
4 |
1/8 |
5,5 |
20 |
6 |
M12X1 |
16.5 |
15 |
39,5÷45,5 |
18 |
28,5 |
26 |
14 |
16 |
10 |
|
55960 00 001
|
-
Request access
|
6 |
1/8 |
5,5 |
20 |
6 |
M12X1 |
16.5 |
15 |
39,5÷45,5 |
18 |
28,5 |
26 |
14 |
16 |
10 |
|
55960 00 002
|
-
Request access
|
6 |
1/4 |
7 |
20 |
6 |
M12X1 |
16.5 |
15 |
39,5÷45,5 |
18 |
28,5 |
26 |
14 |
16 |
10 |
|
55960 00 003
|
-
Request access
|
8 |
1/4 |
7 |
23 |
6.5 |
M14X1 |
16.5 |
17 |
42,5÷48,5 |
20 |
33,5 |
29 |
16 |
20 |
10 |
|
55960 00 004
|
-
Request access
|
8 |
3/8 |
7,5 |
23 |
6,5 |
M14X1 |
16,5 |
17 |
42,5÷48,5 |
20 |
33,5 |
29 |
16 |
20 |
10 |
|
55960 00 005
|
-
Request access
|
10 |
3/8 |
7,5 |
24,5 |
8 |
M16X1 |
20,5 |
19 |
42,5÷54 |
22,5 |
34,5 |
33,5 |
18 |
20 |
10 |
|
55960 00 006
|
-
Request access
|
10 |
1/2 |
9 |
25 |
8 |
M16X1 |
21 |
19 |
42,5÷54,5 |
22,5 |
34,5 |
33,5 |
18 |
21 |
10 |
