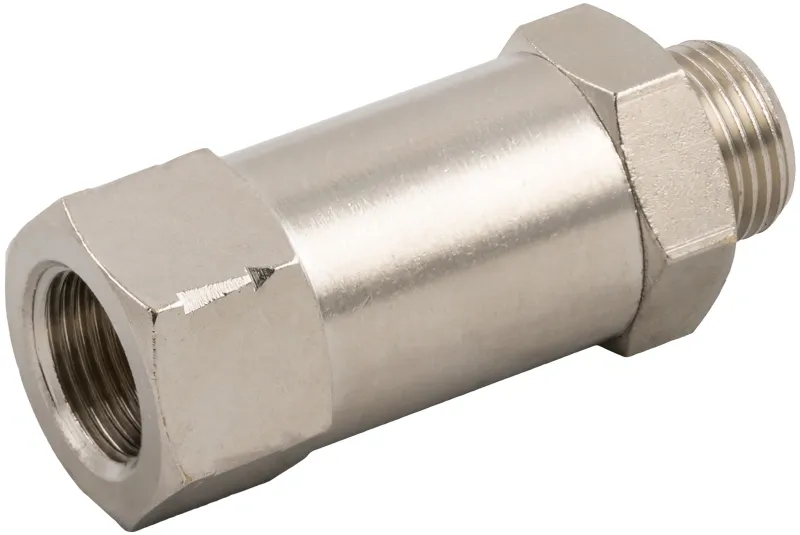

MALE-FEMALE NON-RETURN VALVE

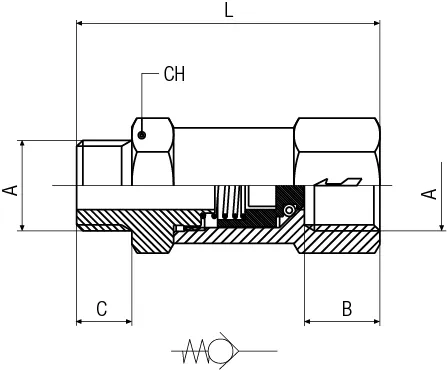

Code	3D Drawings	A	B	C	L	CH	Seal	Bag
06063 00 001	Request access	M5	5,5	4	34,5	8	NBR	10
06063 00 002	Request access	1/8	8,5	6	37,5	14	NBR	10
06063 00 003	Request access	1/4	11	8	46,5	17	NBR	10
06063 00 004	Request access	3/8	12	9	61	24	NBR	10
06063 00 005	Request access	1/2	15	10	64	24	NBR	10
06063 00 006	Request access	M5	5,5	4	34,5	8	FKM	10
06063 00 007	Request access	1/8	8,5	6	37,5	14	FKM	10
06063 00 008	Request access	1/4	11	8	46,5	17	FKM	10
06063 00 009	Request access	3/8	12	9	61	24	FKM	10
06063 00 010	Request access	1/2	15	10	64	24	FKM	10
