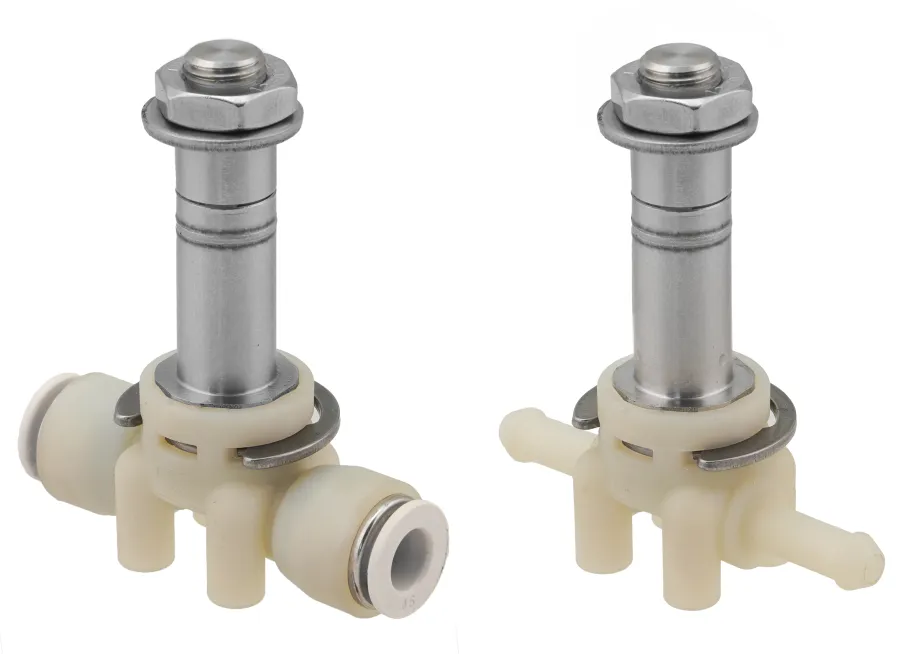

DIRECT ACTING SOLENOID VALVES

Code	3D Drawings	Sealing material	Temperature	Port size	Ø Orifice (mm)	Viscosity (cSt)	Kv (m3/h)	OPD (ΔP) - DC (6.5 W)	OPD (ΔP) - AC (7.5 VA)	Package
T1F X1 1 15 N 0	Request access	NBR	-10°C +90°C	Push-in Ø4	1.5	25	0.06	0 - 16 bar	0 - 20 bar	1
T1F X1 1 15 V 0	Request access	FKM	-10°C +140°C	Push-in Ø4	1.5	25	0.06	0 - 16 bar	0 - 20 bar	1
T1F X1 1 15 E 0	Request access	EPDM	-10°C +140°C	Push-in Ø4	1.5	25	0.06	0 - 16 bar	0 - 20 bar	1
T1F X1 1 15 C 0	Request access	CR	-35°C +100°C	Push-in Ø4	1.5	25	0.06	0 - 16 bar	0 - 20 bar	1
T1F X1 1 02 N 0	Request access	NBR	-10°C +90°C	Push-in Ø4	2	37	0.09	0 - 12 bar	0 - 20 bar	1
T1F X1 1 02 V 0	Request access	FKM	-10°C +140°C	Push-in Ø4	2	37	0.09	0 - 12 bar	0 - 20 bar	1
T1F X1 1 02 E 0	Request access	EPDM	-10°C +140°C	Push-in Ø4	2	37	0.09	0 - 12 bar	0 - 20 bar	1
T1F X1 1 02 C 0	Request access	CR	-35°C +100°C	Push-in Ø4	2	37	0.09	0 - 12 bar	0 - 20 bar	1
T1F X1 1 25 N 0	Request access	NBR	-10°C +90°C	Push-in Ø4	2.5	53	0.15	0 - 4.5 bar	0 - 18 bar	1
T1F X1 1 25 V 0	Request access	FKM	-10°C +140°C	Push-in Ø4	2.5	53	0.15	0 - 4.5 bar	0 - 18 bar	1
T1F X1 1 25 E 0	Request access	EPDM	-10°C +140°C	Push-in Ø4	2.5	53	0.15	0 - 4.5 bar	0 - 18 bar	1
T1F X1 1 25 C 0	Request access	CR	-35°C +100°C	Push-in Ø4	2.5	53	0.15	0 - 4.5 bar	0 - 18 bar	1
T1F X4 1 15 N 0	Request access	NBR	-10°C +90°C	Push-in Ø6	1.5	25	0.06	0 - 16 bar	0 - 20 bar	1
T1F X4 1 15 V 0	Request access	FKM	-10°C +140°C	Push-in Ø6	1.5	25	0.06	0 - 16 bar	0 - 20 bar	1
T1F X4 1 15 E 0	Request access	EPDM	-10°C +140°C	Push-in Ø6	1.5	25	0.06	0 - 16 bar	0 - 20 bar	1
T1F X4 1 15 C 0	Request access	CR	-35°C +100°C	Push-in Ø6	1.5	25	0.06	0 - 16 bar	0 - 20 bar	1
T1F X4 1 02 N 0	Request access	NBR	-10°C +90°C	Push-in Ø6	2	37	0.09	0 - 12 bar	0 - 20 bar	1
T1F X4 1 02 V 0	Request access	FKM	-10°C +140°C	Push-in Ø6	2	37	0.09	0 - 12 bar	0 - 20 bar	1
T1F X4 1 02 E 0	Request access	EPDM	-10°C +140°C	Push-in Ø6	2	37	0.09	0 - 12 bar	0 - 20 bar	1
T1F X4 1 02 C 0	Request access	CR	-35°C +100°C	Push-in Ø6	2	37	0.09	0 - 12 bar	0 - 20 bar	1
T1F X4 1 25 N 0	Request access	NBR	-10°C +90°C	Push-in Ø6	2.5	53	0.15	0 - 4.5 bar	0 - 18 bar	1
T1F X4 1 25 V 0	Request access	FKM	-10°C +140°C	Push-in Ø6	2.5	53	0.15	0 - 4.5 bar	0 - 18 bar	1
T1F X4 1 25 E 0	Request access	EPDM	-10°C +140°C	Push-in Ø6	2.5	53	0.15	0 - 4.5 bar	0 - 18 bar	1
T1F X4 1 25 C 0	Request access	CR	-35°C +100°C	Push-in Ø6	2.5	53	0.15	0 - 4.5 bar	0 - 18 bar	1
T1F X4 1 03 N 0	Request access	NBR	-10°C +90°C	Push-in Ø6	3	53	0.20	0 - 3 bar	0 - 10 bar	1
T1F X4 1 03 V 0	Request access	FKM	-10°C +140°C	Push-in Ø6	3	53	0.20	0 - 3 bar	0 - 10 bar	1
T1F X4 1 03 E 0	Request access	EPDM	-10°C +140°C	Push-in Ø6	3	53	0.20	0 - 3 bar	0 - 10 bar	1
T1F X4 1 03 C 0	Request access	CR	-35°C +100°C	Push-in Ø6	3	53	0.20	0 - 3 bar	0 - 10 bar	1
T1F X4 1 15 N 1	Request access	NBR	-10°C +90°C	Hose barb Ø6	1.5	25	0.06	0 - 16 bar	0 - 20 bar	1
T1F X4 1 15 V 1	Request access	FKM	-10°C +140°C	Hose barb Ø6	1.5	25	0.06	0 - 16 bar	0 - 20 bar	1
T1F X4 1 15 E 1	Request access	EPDM	-10°C +140°C	Hose barb Ø6	1.5	25	0.06	0 - 16 bar	0 - 20 bar	1
T1F X4 1 15 C 1	Request access	CR	-35°C +100°C	Hose barb Ø6	1.5	25	0.06	0 - 16 bar	0 - 20 bar	1
T1F X4 1 02 N 1	Request access	NBR	-10°C +90°C	Hose barb Ø6	2	37	0.09	0 - 12 bar	0 - 20 bar	1
T1F X4 1 02 V 1	Request access	FKM	-10°C +140°C	Hose barb Ø6	2	37	0.09	0 - 12 bar	0 - 20 bar	1
T1F X4 1 02 E 1	Request access	EPDM	-10°C +140°C	Hose barb Ø6	2	37	0.09	0 - 12 bar	0 - 20 bar	1
T1F X4 1 02 C 1	Request access	CR	-35°C +100°C	Hose barb Ø6	2	37	0.09	0 - 12 bar	0 - 20 bar	1
T1F X4 1 25 N 1	Request access	NBR	-10°C +90°C	Hose barb Ø6	2.5	53	0.15	0 - 4.5 bar	0 - 18 bar	1
T1F X4 1 25 V 1	Request access	FKM	-10°C +140°C	Hose barb Ø6	2.5	53	0.15	0 - 4.5 bar	0 - 18 bar	1
T1F X4 1 25 E 1	Request access	EPDM	-10°C +140°C	Hose barb Ø6	2.5	53	0.15	0 - 4.5 bar	0 - 18 bar	1
T1F X4 1 25 C 1	Request access	CR	-35°C +100°C	Hose barb Ø6	2.5	53	0.15	0 - 4.5 bar	0 - 18 bar	1
