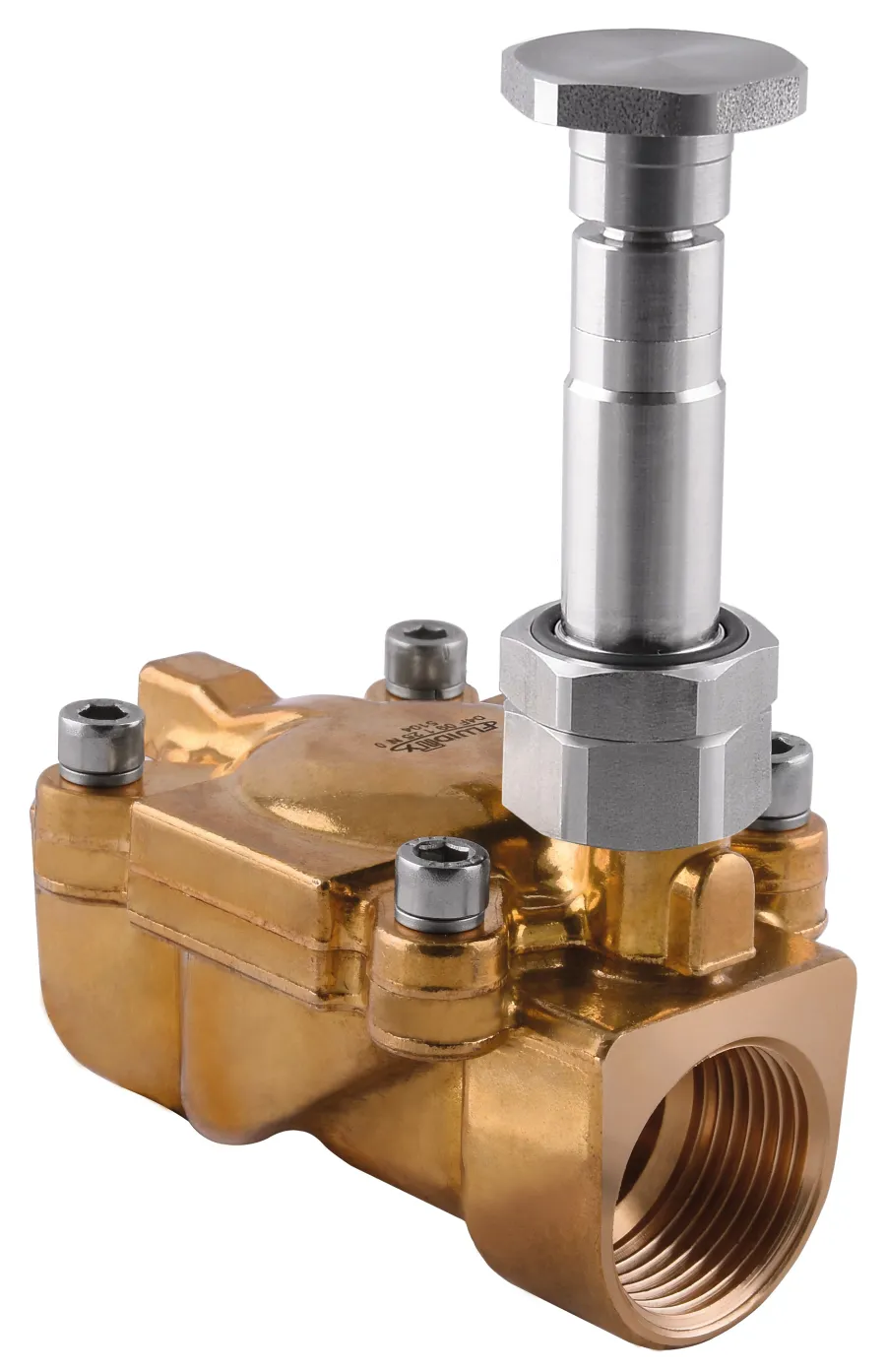

ATEX SERVO-ASSISTED SOLENOID VALVES

H = Without manual override

Code	3D Drawings	Version	Sealing material	Temperature	Port size	Ø Orifice (mm)	Viscosity (cSt)	Kv (m3/h)	OPD (ΔP) - DC (8 W)	OPD (ΔP) - AC (12 VA)	Package
04A 03 1 10 N H	Request access	H	NBR	-10°C +90°C	1/4"	10	25	1.88	0.15 - 20 bar	0.15 - 20 bar	1
04A 03 1 10 V H	Request access	H	FKM	-10°C +140°C	1/4"	10	25	1.88	0.15 - 20 bar	0.15 - 20 bar	1
04A 03 1 10 E H	Request access	H	EPDM	-10°C +140°C	1/4"	10	25	1.88	0.15 - 20 bar	0.15 - 20 bar	1
04A 04 1 14 N H	Request access	H	NBR	-10°C +90°C	3/8"	14	25	3.32	0.15 - 20 bar	0.15 - 20 bar	1
04A 04 1 14 V H	Request access	H	FKM	-10°C +140°C	3/8"	14	25	3.32	0.15 - 20 bar	0.15 - 20 bar	1
04A 04 1 14 E H	Request access	H	EPDM	-10°C +140°C	3/8"	14	25	3.32	0.15 - 20 bar	0.15 - 20 bar	1
04A 05 1 14 N H	Request access	H	NBR	-10°C +90°C	1/2"	14	25	3.53	0.15 - 20 bar	0.15 - 20 bar	1
04A 05 1 14 V H	Request access	H	FKM	-10°C +140°C	1/2"	14	25	3.53	0.15 - 20 bar	0.15 - 20 bar	1
04A 05 1 14 E H	Request access	H	EPDM	-10°C +140°C	1/2"	14	25	3.53	0.15 - 20 bar	0.15 - 20 bar	1
04A 07 1 18 N H	Request access	H	NBR	-10°C +90°C	3/4"	18	25	5.56	0.15 - 20 bar	0.15 - 20 bar	1
04A 07 1 18 V H	Request access	H	FKM	-10°C +140°C	3/4"	18	25	5.56	0.15 - 20 bar	0.15 - 20 bar	1
04A 07 1 18 E H	Request access	H	EPDM	-10°C +140°C	3/4"	18	25	5.56	0.15 - 20 bar	0.15 - 20 bar	1
04A 09 1 25 N H	Request access	H	NBR	-10°C +90°C	1"	25	25	10.97	0.15 - 20 bar	0.15 - 20 bar	1
04A 09 1 25 V H	Request access	H	FKM	-10°C +140°C	1"	25	25	10.97	0.15 - 20 bar	0.15 - 20 bar	1
04A 09 1 25 E H	Request access	H	EPDM	-10°C +140°C	1"	25	25	10.97	0.15 - 20 bar	0.15 - 20 bar	1
