FORM A / EN 175301-803 (EX DIN 43650)
| Code | 3D Drawings | Reference | Ø Operator (mm) | Size (mm) | Voltage | Power | Bag | |
|---|---|---|---|---|---|---|---|---|
| SOL20 220 A B 000 | Request access | D3 | 13 | 30 | 220V AC / 50-60 Hz | 21 VA | 1 | |
| SOL20 110 A B 000 | Request access | D2 | 13 | 30 | 110V AC / 50-60 Hz | 21 VA | 1 | |

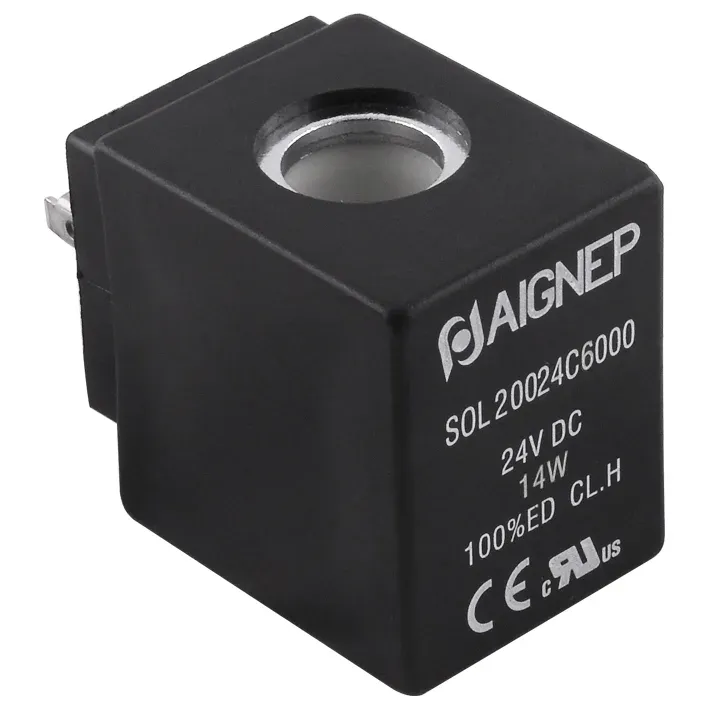

| SOL20 024 C 6 000 | Request access | DB | 13 | 30 | 24V DC | 14 W | 1 | |
| SOL20 024 A B 000 | Request access | D1 | 13 | 30 | 24V AC / 50-60 Hz | 21 VA | 1 | |
| SOL20 012 C 6 000 | Request access | DA | 13 | 30 | 12V DC | 14 W | 1 |
