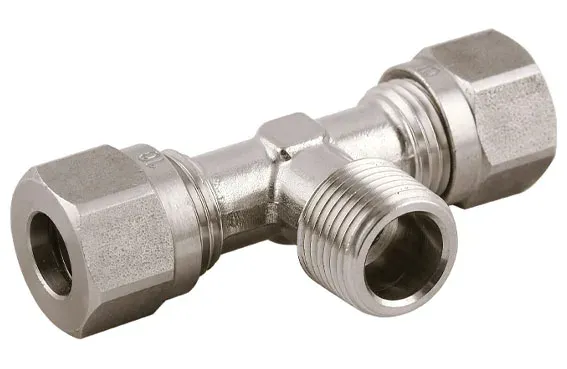

TEE MALE ADAPTOR - CENTRE LEG

*Until the end stock

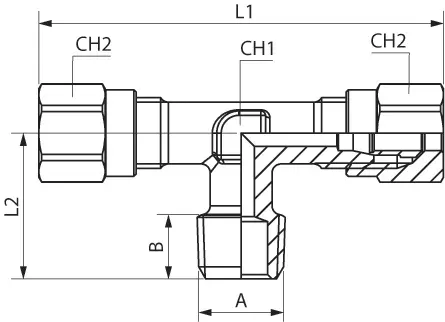

Code	3D Drawings	Tube	A	B	L1	L2	CH1	CH2	Bag
69220 00 001	Request access	4	1/8	7,5	46	16,5	9	10	2
69220 00 003	Request access	6	1/4	11	46	19,5	9	12	2
69220 00 004	Request access	8	1/8	7,5	51	17	12	14	2
69220 00 005	Request access	8	1/4	11	51	21	12	14	2
69220 00 006	Request access	8	3/8	11,5	51	22	12	14	2
69220 00 007	Request access	10	1/4	11	66	24,5	14	19	2
69220 00 008	Request access	10	3/8	11,5	66	25,5	14	19	2
69220 00 009	Request access	12	3/8	11,5	70	27	17	22	2
69220 00 010	Request access	12	1/2	14	70	31	17	22	2
