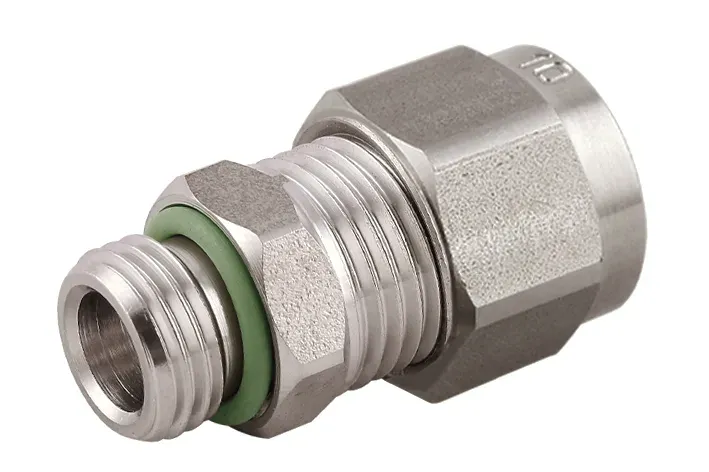

STRAIGHT MALE ADAPTOR WITH FKM OR

*Low friction nut for easier tightening

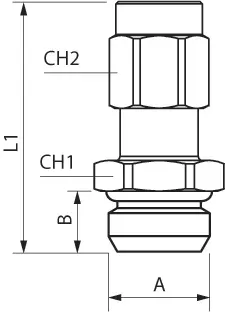

Code	3D Drawings	Tube	A	B	L	CH1	CH2	Bag
69485 X0 001	Request access	4	1/8	6	26	13	10	2
69485 X0 002	Request access	6	1/8	6	26	13	12	2
69485 X0 003	Request access	6	1/4	8	28	15	12	2
69485 X0 004	Request access	8	1/8	6	27,5	13	14	2
69485 X0 005	Request access	8	1/4	8	29,5	15	14	2
69485 X0 006	Request access	8	3/8	9	31,5	20	14	2
69485 X0 007	Request access	10	1/4	8	34,5	16	19	2
69485 X0 008	Request access	10	3/8	9	35,5	20	19	2
69485 X0 009	Request access	12	3/8	9	35,5	20	22	2
69485 X0 010	Request access	12	1/2	10	37,5	25	22	2
