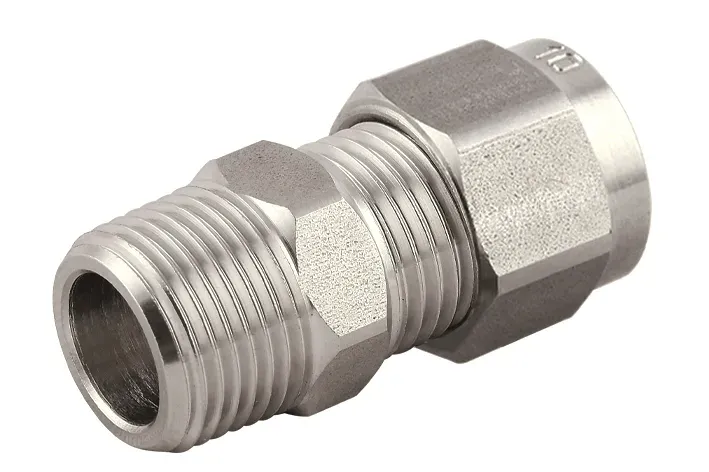

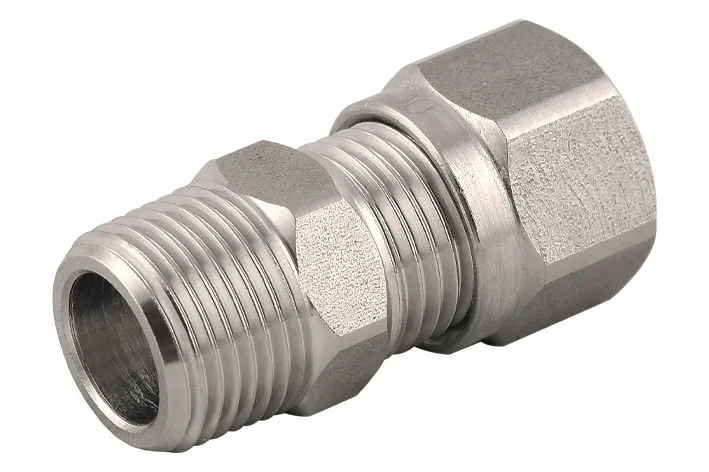

STRAIGHT MALE ADAPTOR

*Low friction nut for easier tightening

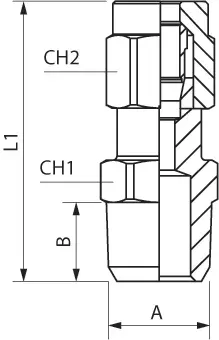

Code	3D Drawings	Tube	A	B	L1	CH1	CH2	Bag
69480 X0 001	Request access	4	1/8	7,5	27,5	10	10	2
69480 X0 002	Request access	6	1/8	7,5	27,5	10	12	2
69480 X0 003	Request access	6	1/4	11	32	14	12	2
69480 X0 004	Request access	8	1/8	7,5	30	12	14	2
69480 X0 005	Request access	8	1/4	11	33,5	14	14	2
69480 X0 006	Request access	8	3/8	11,5	35	17	14	2
69480 X0 007	Request access	10	1/4	11	38,5	16	19	2
69480 X0 008	Request access	10	3/8	11,5	39,5	17	19	2
69480 X0 009	Request access	12	3/8	11,5	40	18	22	2
69480 X0 010	Request access	12	1/2	14	42,5	21	22	2
