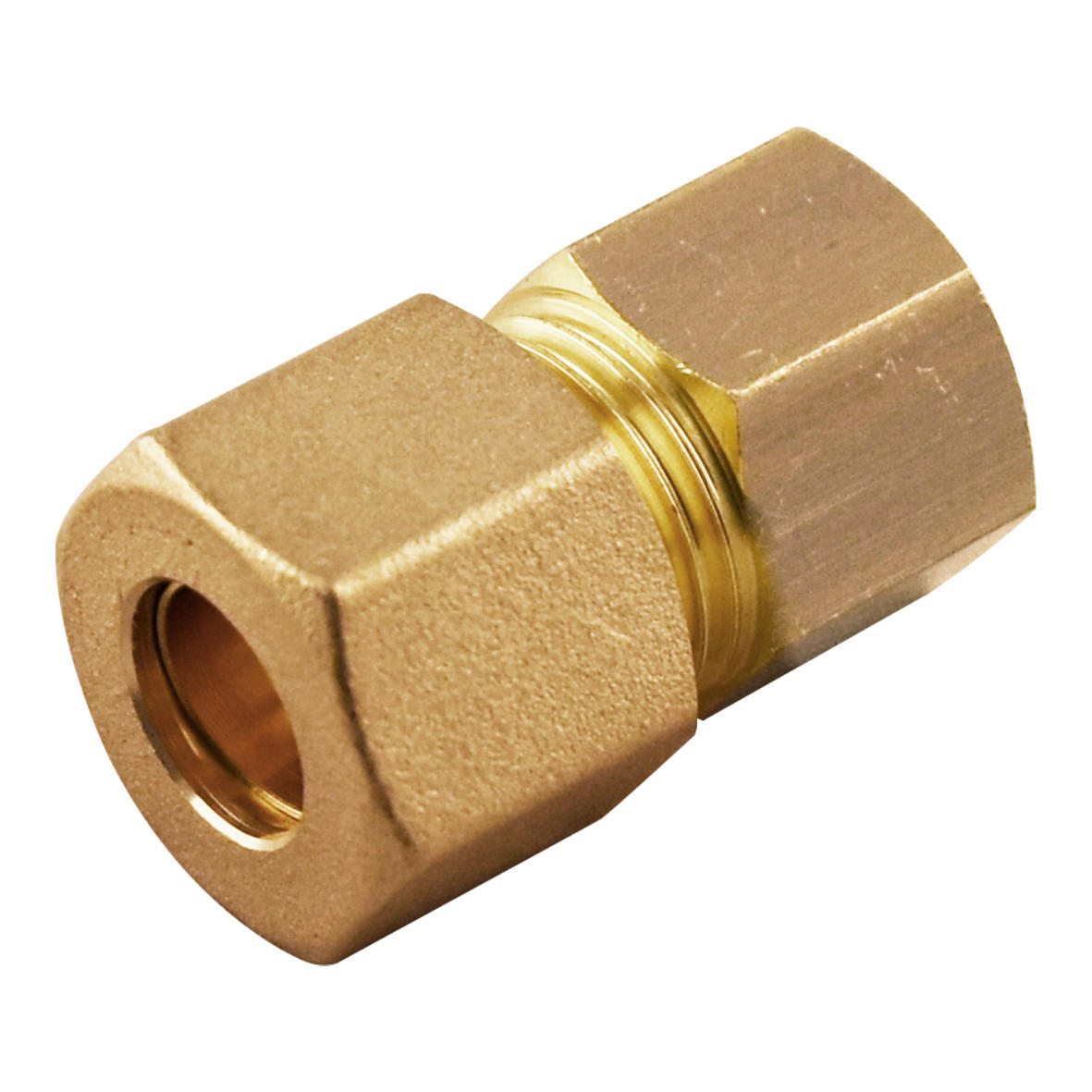

STRAIGHT FEMALE ADAPTOR

Code	3D Drawings	Tube	A	B	L	CH	Bag
13500 00 001	Request access	4	1/8	8,5	25	14	10
13500 00 002	Request access	4	1/4	11	27,5	17	10
13500 00 003	Request access	6	1/8	8,5	26	14	10
13500 00 004	Request access	6	1/4	11	28,5	17	10
13500 00 005	Request access	8	1/8	8,5	28	14	10
13500 00 006	Request access	8	1/4	11	30,5	17	10
13500 00 007	Request access	8	3/8	11,5	31,5	20	10
13500 00 008	Request access	10	1/4	11	33	17	10
13500 00 009	Request access	10	3/8	11,5	33,5	20	10
13500 00 010	Request access	10	1/2	13,5	35,5	24	10
13500 00 011	Request access	12	1/4	11	34	18	10
13500 00 012	Request access	12	3/8	11,5	34,5	20	10
13500 00 013	Request access	12	1/2	13,5	34	24	10
13500 00 014	Request access	14	3/8	11,5	36,5	20	10
13500 00 015	Request access	14	1/2	13,5	34	24	10
13500 00 016	Request access	15	1/2	13,5	36,5	24	10
13500 00 017	Request access	16	1/2	13,5	39	24	10
13500 00 018	Request access	16	3/4	14,5	40,5	30	10
13500 00 019	Request access	18	1/2	13,5	40	24	10
13500 00 020	Request access	18	3/4	14,5	41,5	30	10
13500 00 021	Request access	22	3/4	14,5	41,5	30	10
