13540

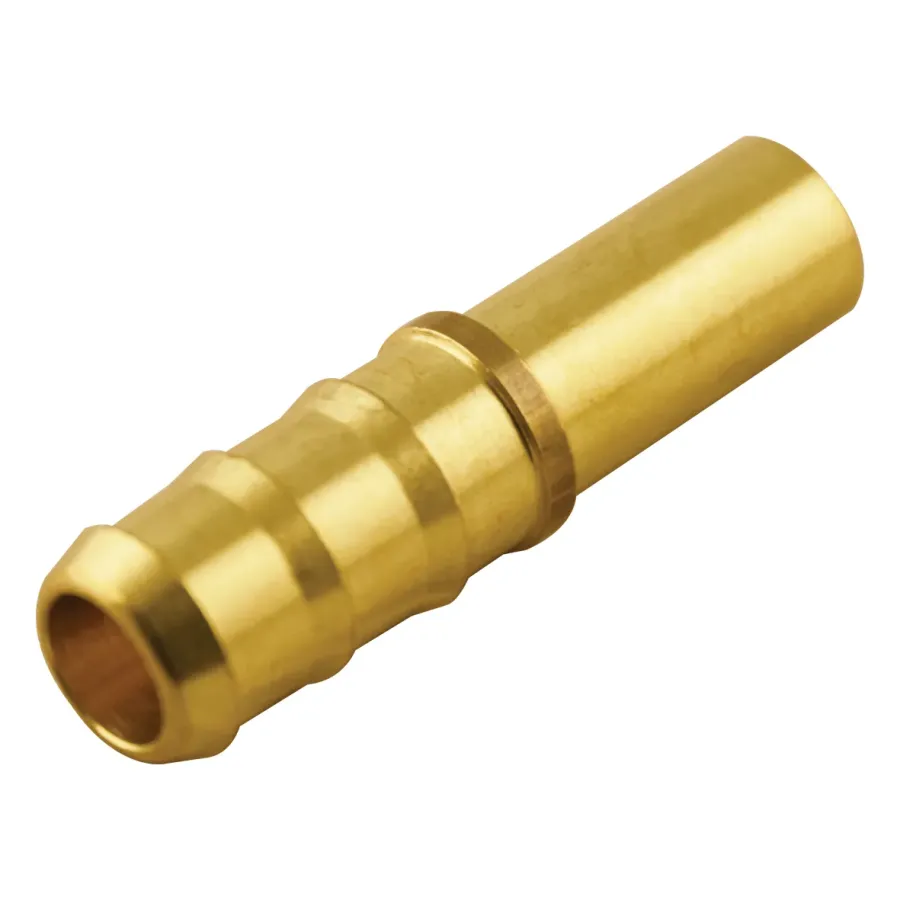

SLEEVE HOSE ADAPTER FOR CAOUTCHOUC TUBES

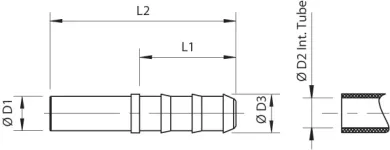

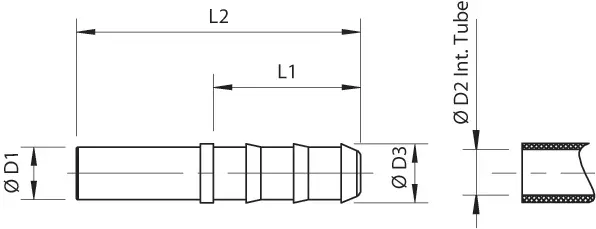

| Code | 3D Drawings | D1 | D2 | D3 | L1 | L | Bag | |
|---|---|---|---|---|---|---|---|---|
| 13540 00 01 MT 00 | Request access | 4 | 4 | 6 | 22.5 | 39 | 10 | |
| 13540 00 01 FM 00 | Request access | 6 | 4 | 6 | 22.5 | 38.5 | 10 | |
| 13540 00 01 GG 00 | Request access | 6 | 7 | 9 | 22.5 | 40.5 | 10 | |
| 13540 00 01 GF 00 | Request access | 8 | 6 | 8 | 22.5 | 40 | 10 | |
| 13540 00 01 GH 00 | Request access | 8 | 7 | 9 | 22.5 | 43.5 | 10 | |
| 13540 00 01 GP 00 | Request access | 8 | 10 | 12 | 22.5 | 43.5 | 10 | |
| 13540 00 01 GI 00 | Request access | 10 | 7 | 9 | 22.5 | 44.5 | 10 | |
| 13540 00 01 FR 00 | Request access | 10 | 10 | 12 | 22.5 | 44.5 | 10 | |
| 13540 00 01 FS 00 | Request access | 12 | 10 | 12 | 22.5 | 45 | 10 | |
| 13540 00 01 GM 00 | Request access | 12 | 13 | 15.5 | 29.5 | 52 | 10 | |
| 13540 00 01 GN 00 | Request access | 14 | 13 | 15.5 | 29.5 | 52.5 | 10 | |
| 13540 0A 01 1Q 00 | Request access | 14 | 16 | 18.5 | 38 | 62.5 | 10 | |
| 13540 0A 01 1R 00 | Request access | 16 | 13 | 15 | 29.5 | 53.5 | 10 | |
| 13540 00 01 Y5 00 | Request access | 16 | 16 | 18.5 | 38 | 64 | 10 | |
| 13540 0A 01 1S 00 | Request access | 18 | 16 | 18.5 | 38 | 62 | 10 | |
| 13540 0A 01 1T 00 | Request access | 18 | 19 | 21.5 | 38 | 64 | 10 | |
| 13540 0A 01 1U 00 | Request access | 20 | 19 | 21.5 | 38 | 66 | 10 | |
| 13540 0A 01 1V 00 | Request access | 25 | 19 | 21.5 | 38 | 70 | 10 | |
| 13540 00 01 J4 00 | Request access | 25 | 25 | 27.5 | 38 | 72 | 10 |
