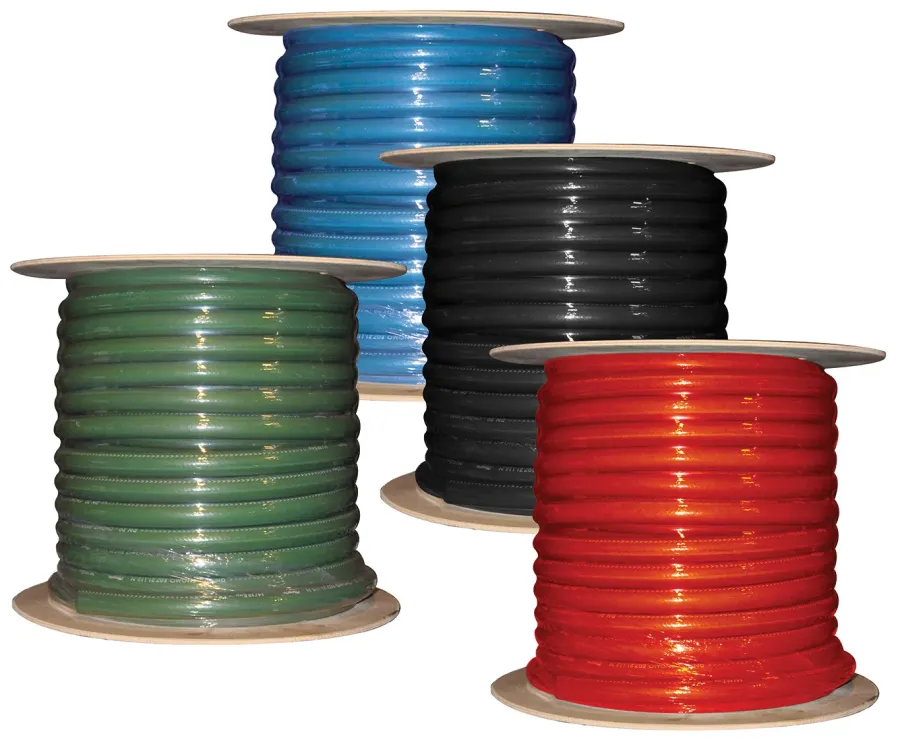

PUSH-LOCK HOSE

Code	3D Drawings	Diam. Int. Inch	Diam. Int. mm	Diam. Ext. mm	Colors	Bending Radius	Working Pressure	Burst Pressure	Bag
TBPL 5/8 0 VE 080	Request access	5/8	16	22,9	Green	115mm	16 bar	64 bar	80 Mt
TBPL 5/8 0 RO 080	Request access	5/8	16	22,9	Red	115mm	16 bar	64 bar	80 Mt
TBPL 5/8 0 BL 080	Request access	5/8	16	22,9	Blue	115mm	16 bar	64 bar	80 Mt
TBPL 3/8 0 VE 100	Request access	3/8	9,6	15,5	Green	75mm	16 bar	64 bar	100 Mt
TBPL 3/8 0 RO 100	Request access	3/8	9,6	15,5	Red	75mm	16 bar	64 bar	100 Mt
TBPL 3/8 0 NE 100	Request access	3/8	9,6	15,5	Black	75mm	16 bar	64 bar	100 Mt
TBPL 3/8 0 BL 100	Request access	3/8	9,6	15,5	Blue	75mm	16 bar	64 bar	100 Mt
TBPL 3/4 0 VE 080	Request access	3/4	19,2	26,5	Green	135mm	16 bar	64 bar	80 Mt
TBPL 3/4 0 RO 080	Request access	3/4	19,2	26,5	Red	135mm	16 bar	64 bar	80 Mt
TBPL 3/4 0 NE 080	Request access	3/4	19,2	26,5	Black	135mm	16 bar	64 bar	80 Mt
TBPL 3/4 0 BL 080	Request access	3/4	19,2	26,5	Blue	135mm	16 bar	64 bar	80 Mt
TBPL 1/4 0 VE 100	Request access	1/4	6,3	12,4	Green	45mm	16 bar	64 bar	100 Mt
TBPL 1/4 0 RO 100	Request access	1/4	6,3	12,4	Red	45mm	16 bar	64 bar	100 Mt
TBPL 1/4 0 NE 100	Request access	1/4	6,3	12,4	Black	45mm	16 bar	64 bar	100 Mt
TBPL 1/4 0 BL 100	Request access	1/4	6,3	12,4	Blue	45mm	16 bar	64 bar	100 Mt
TBPL 1/2 0 VE 100	Request access	1/2	12,7	18,7	Green	90mm	16 bar	64 bar	100 Mt
TBPL 1/2 0 RO 100	Request access	1/2	12,7	18,7	Red	90mm	16 bar	64 bar	100 Mt
TBPL 1/2 0 NE 100	Request access	1/2	12,7	18,7	Black	90mm	16 bar	64 bar	100 Mt
TBPL 1/2 0 BL 100	Request access	1/2	12,7	18,7	Blue	90mm	16 bar	64 bar	100 Mt
