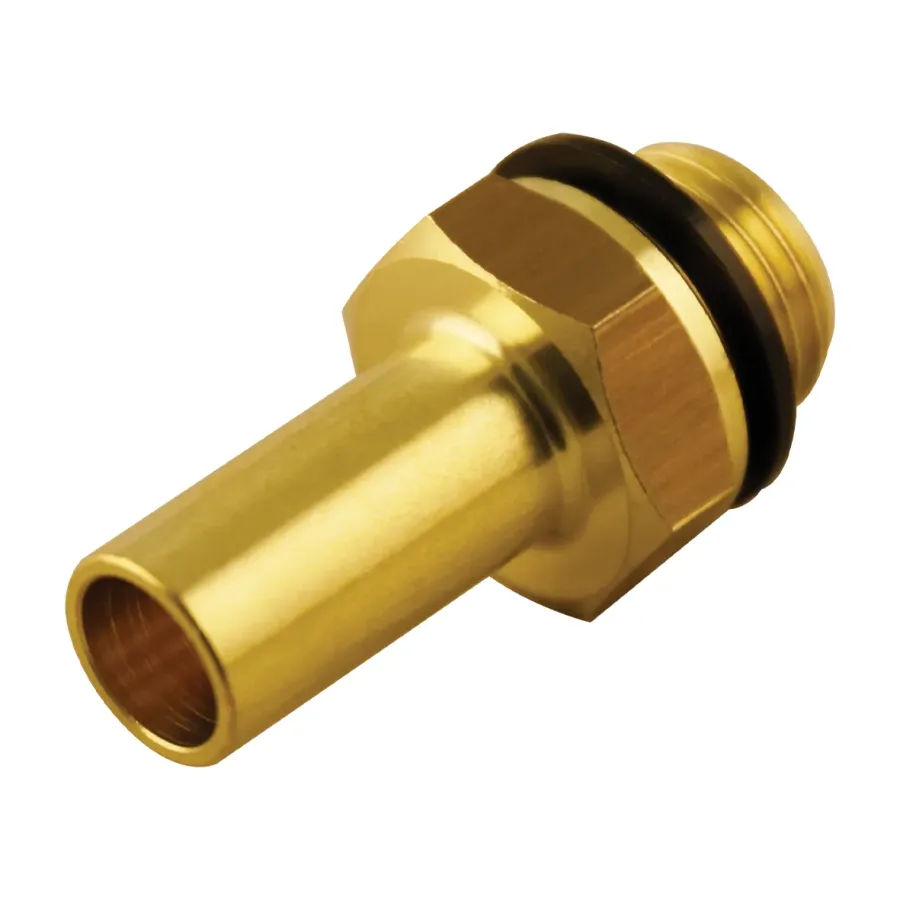

ORIENTING MALE ADAPTOR PARALLEL

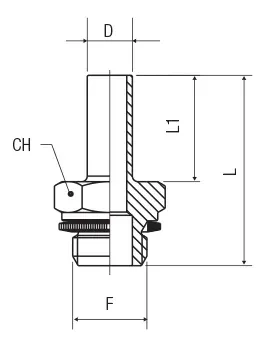

Code	3D Drawings	D	F	L	L1	CH	°C Min	°C Max	Bag
13530 00 001	Request access	6	1/8	27,5	16	13	-20	+80	10
13530 00 002	Request access	6	1/4	31	16	17	-20	+80	10
13530 00 003	Request access	8	1/8	31,5	19	13	-20	+80	10
13530 00 004	Request access	8	1/4	34	19	17	-20	+80	10
13530 00 005	Request access	8	3/8	38	19	22	-20	+80	10
13530 00 006	Request access	10	1/4	35	20	17	-20	+80	10
13530 00 007	Request access	10	3/8	39	20	22	-20	+80	10
13530 00 008	Request access	14	3/8	40	21	22	-20	+80	10
13530 00 009	Request access	14	1/2	42	21	27	-20	+80	10
