Filter

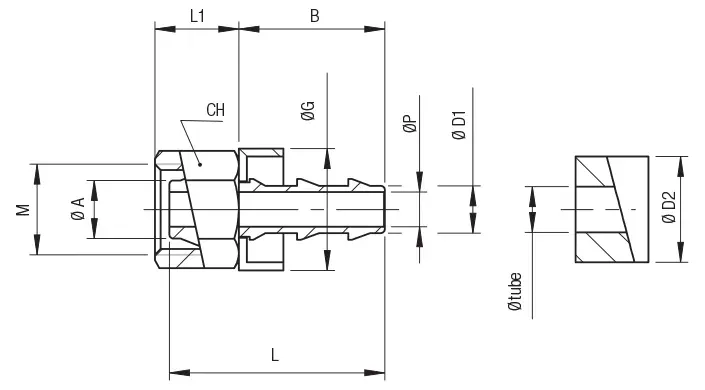

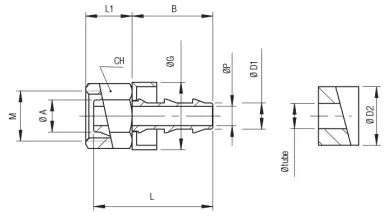

| Code | 3D Drawings | Tube | M | Ø A | Ø D1 | Ø D2 | CH | Ø G | L | B | L1 | Ø P | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13800 00 001 | Request access | 1/4 | M10X1 | 6 | 6,5 | 13 | 12 | 16.7 | 32,5 | 20 | 11,5 | 4,8 | 10 | |
| 13800 00 002 | Request access | 1/4 | M12X1 | 8 | 6,5 | 13 | 14 | 16.7 | 29,5 | 20 | 12,5 | 4,8 | 10 | |
| 13800 00 003 | Request access | 1/4 | M16X1,5 | 10 | 6,5 | 13 | 19 | 16.7 | 30,5 | 24 | 14 | 4,8 | 10 | |
| 13800 00 004 | Request access | 3/8 | M16X1,5 | 10 | 9.5 | 16 | 19 | 19.5 | 34,5 | 24 | 14 | 7,5 | 10 | |
| 13800 00 005 | Request access | 3/8 | M20X1,5 | 14 | 9.5 | 16 | 24 | 19.5 | 36 | 28 | 14 | 7,5 | 10 | |
| 13800 00 006 | Request access | 1/2 | M20X1,5 | 14 | 12.7 | 19 | 24 | 23.5 | 40 | 28 | 14 | 10 | 10 | |
| 13800 00 010 | Request access | 1/2 | M22X1,5 | 16 | 12.7 | 19 | 27 | 23.5 | 44 | 28,5 | 15,5 | 10 | 10 | |
| 13800 00 007 | Request access | 1/2 | M24X1,5 | 18 | 12.7 | 19 | 30 | 23.5 | 40,5 | 36,5 | 17 | 10 | 10 | |
| 13800 00 008 | Request access | 5/8 | M24X1,5 | 18 | 15.7 | 23 | 30 | 27.3 | 49 | 36,5 | 17 | 13,5 | 10 | |
| 13800 00 009 | Request access | 3/4 | M30X1,5 | 22 | 18.8 | 27 | 36 | 30.8 | 57,5 | 43 | 17 | 16 | 10 |
