BULKHEAD CONNECTOR | Aignep S.p.A.

Filter

13465

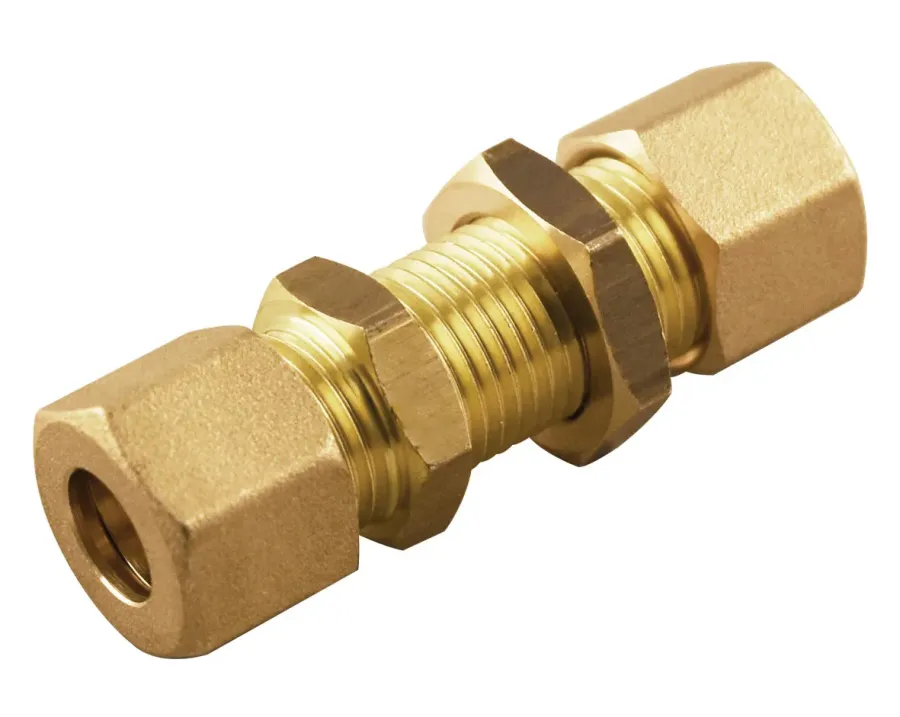

BULKHEAD CONNECTOR

prodotto___rs13000_13465_uni-d

prodotto___rs13000_13465_uni-f

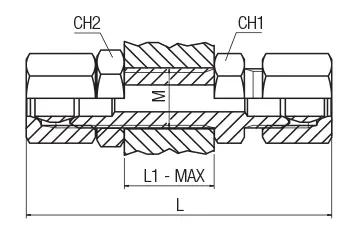

	Code	3D Drawings	Tube	L	L Max	CH1	CH2	M	Bag
	13465 00 001	Request access	4	49	12	10	13	M8X1	10
	13465 00 002	Request access	6	52,5	12,5	13	14	M10X1	10
	13465 00 003	Request access	8	56,5	12,5	14	17	M12X1	10
	13465 00 004	Request access	10	63,5	13	19	22	M16X1,5	10
	13465 00 005	Request access	12	70,5	17	22	22	M18X1,5	10
	13465 00 006	Request access	14	72,5	19	24	24	M20X1,5	10
