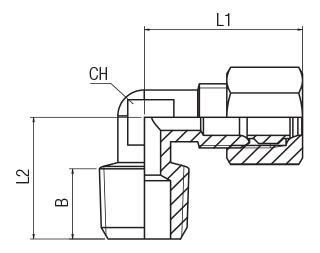

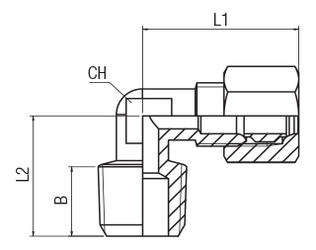

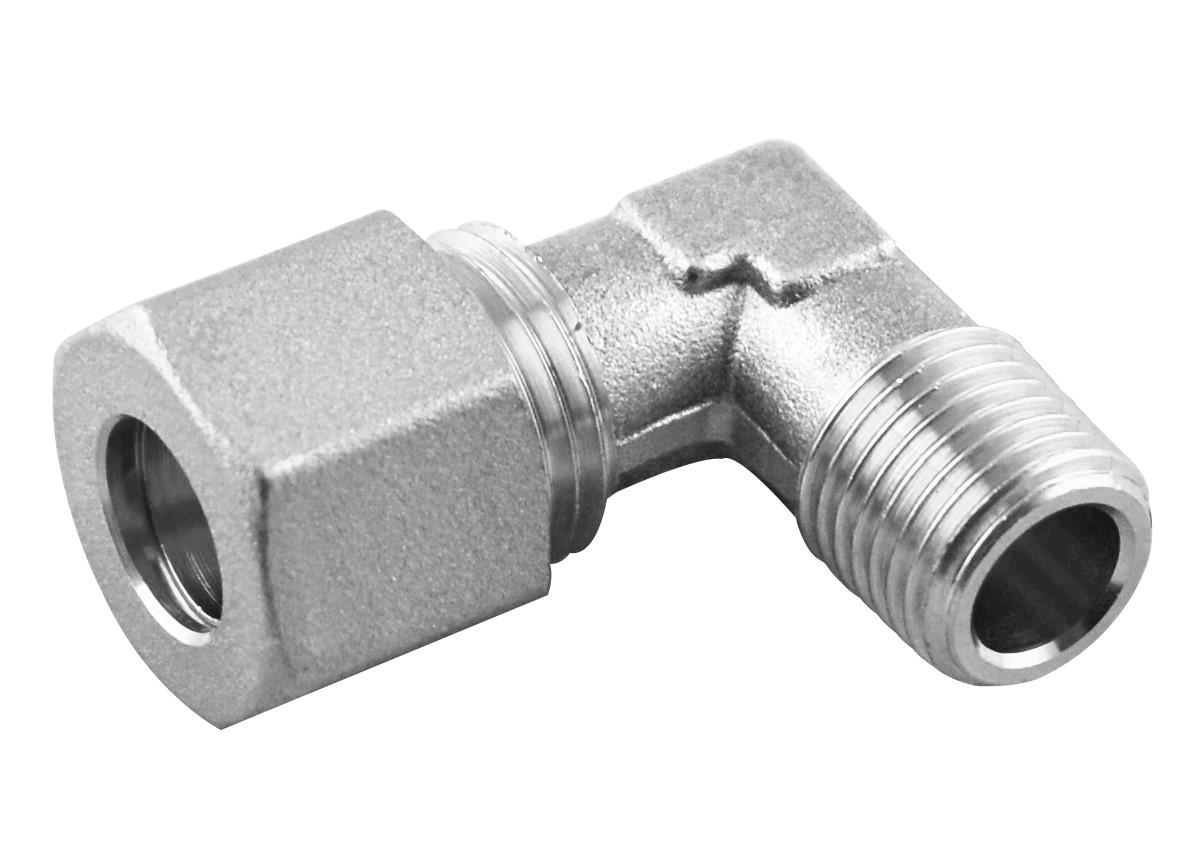

ELBOW MALE ADAPTOR

Code	3D Drawings	Tube	A	L1	L2	CH	Bag
13280 00 020	Request access	4	1/8	21,5	15	8	10
13280 00 021	Request access	6	1/8	24	17	9	10
13280 00 022	Request access	6	1/4	24	19	9	10
13280 00 023	Request access	8	1/8	30	18	11	10
13280 00 024	Request access	8	1/4	30	21,5	11	10
13280 00 025	Request access	8	3/8	30,5	24	13	10
13280 00 026	Request access	10	1/4	33	23,5	13	10
13280 00 027	Request access	10	3/8	33	24,5	13	10
13280 00 028	Request access	10	1/2	35	25	14	10
13280 00 029	Request access	12	1/4	36	24	14	10
13280 00 030	Request access	12	3/8	36	26	14	10
13280 00 031	Request access	12	1/2	36	25	14	10
13280 00 032	Request access	14	3/8	39	26	17	10
13280 00 033	Request access	14	1/2	39	28,5	17	10
13280 00 034	Request access	15	1/2	39	28,5	17	10
13280 00 035	Request access	16	1/2	40	28	17	10
13280 00 036	Request access	18	1/2	41,5	29,5	20	10
13280 00 037	Request access	18	3/4	41,5	32	20	10
13280 00 038	Request access	22	3/4	44,5	34	27	10
