66570

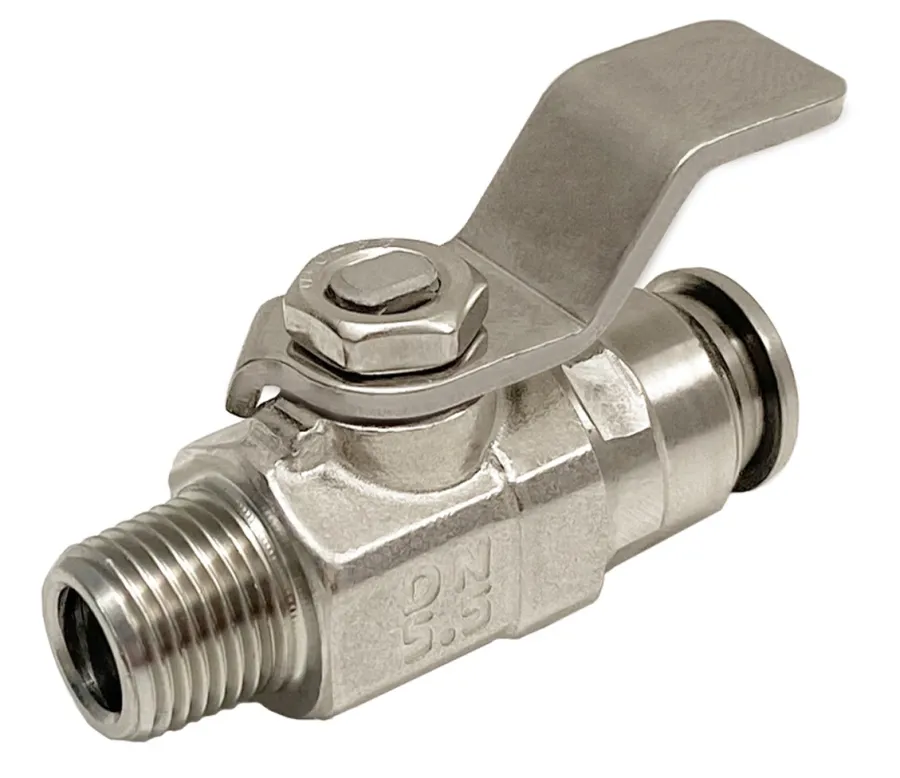

TAPER MALE R ISO 7- PUSH-FIT CONNECTIONS VALVE

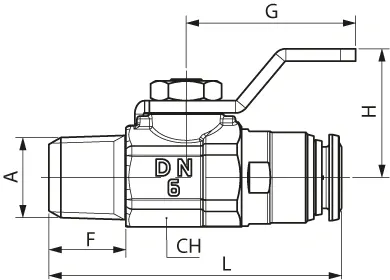

| Code | 3D Drawings | A | Tube | DN | F | CH | L | G | H | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 66570 00 002 | Request access | 1/8 | 6 | 5 | 8.5 | 14-15 | 41 | 28 | 21.5 | 2 | |
| 66570 00 003 | Request access | 1/4 | 6 | 5 | 12.5 | 16-17 | 45 | 28 | 21.5 | 2 | |
| 66570 00 004 | Request access | 1/8 | 8 | 5.5 | 8.5 | 14-15 | 43 | 28 | 21.5 | 2 | |
| 66570 00 005 | Request access | 1/4 | 8 | 5.5 | 12.5 | 16-17 | 48 | 28 | 21.5 | 2 |
