Filter

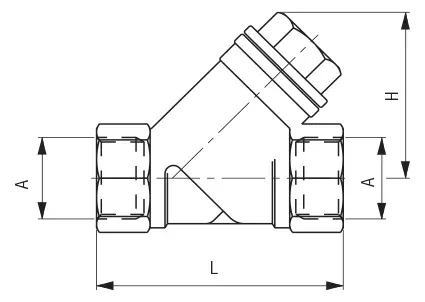

| Code | 3D Drawings | A | D.N. | L | H | PN | KV | Bag | |
|---|---|---|---|---|---|---|---|---|---|
| 06035 00 001 | Request access | 1/4 | 8 | 55 | 40 | 20 | 2,2 | 10 | |
| 06035 00 002 | Request access | 3/8 | 10 | 55 | 40 | 20 | 3,4 | 10 | |
| 06035 00 003 | Request access | 1/2 | 15 | 58 | 40 | 20 | 4,5 | 10 | |
| 06035 00 004 | Request access | 3/4 | 20 | 70 | 50 | 20 | 7,9 | 10 | |
| 06035 00 005 | Request access | 1" | 25 | 87 | 56 | 20 | 11 | 5 | |
| 06035 00 006 | Request access | 1" 1/4 | 32 | 96 | 64 | 20 | 16 | 2 | |
| 06035 00 007 | Request access | 1" 1/2 | 40 | 106 | 73 | 20 | 22 | 2 | |
| 06035 00 008 | Request access | 2" | 50 | 126 | 89 | 20 | 35 | 1 | |
| 06035 00 009 | Request access | 2" 1/2 | 65 | 150 | 107 | 16 | 60 | 1 | |
| 06035 00 010 | Request access | 3" | 80 | 170 | 120 | 16 | 83 | 1 | |
| 06035 00 011 | Request access | 4" | 100 | 219 | 161 | 16 | 100 | 1 |
