TUBE - TUBE VALVE | Aignep S.p.A.

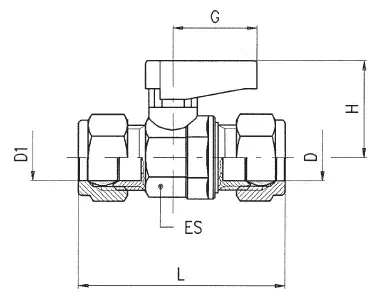

Code	3D Drawings	D1	D	D.N.	ES	L	G	H	Bag
06450 00 001	Request access	6	6	6	14-15	46	19	21	10
06450 00 002	Request access	6	8	6	14-15	48	19	21	10
06450 00 003	Request access	8	8	6	14-15	48	19	21	10
06450 00 004	Request access	10	8	6	14-15	51	19	21	10
06450 00 005	Request access	10	10	8	18-19	55	19	22	10
06450 00 006	Request access	10	12	8	18-19	56	19	22	10
06450 00 007	Request access	12	12	8	18-19	57	19	22	10
06450 00 008	Request access	14	10	8	18-19	59,5	19	22	10
06450 00 009	Request access	14	12	8	18-19	60,5	19	22	10
06450 00 010	Request access	15	10	8	18-19	59,5	19	22	10
06450 00 011	Request access	15	12	8	18-19	60,5	19	22	10
06450 00 012	Request access	14	14	10	22-23	63	26	30,5	10
06450 00 013	Request access	15	14	10	22-23	63	26	30,5	10
06450 00 014	Request access	15	15	10	22-23	63	26	30,5	10
06450 00 015	Request access	16	14	10	22-23	68	26	30,5	10
06450 00 016	Request access	16	15	10	22-23	68	26	30,5	10
06450 00 017	Request access	18	14	10	22-23	68	26	30,5	10
06450 00 018	Request access	18	15	10	22-23	68	26	30,5	10
06450 00 219	Request access	18	16	14	28-30	71	50	33	5
06450 00 220	Request access	18	18	14	28-30	71	50	33	5
