6420

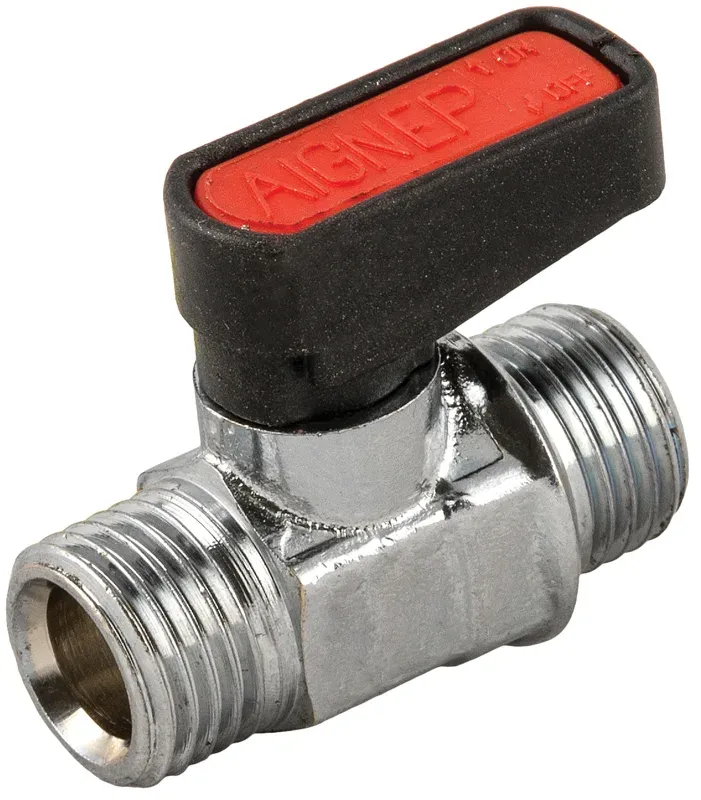

PARALLEL MALE GA ISO 228 - PARALLEL MALE GA ISO 228 VALVE

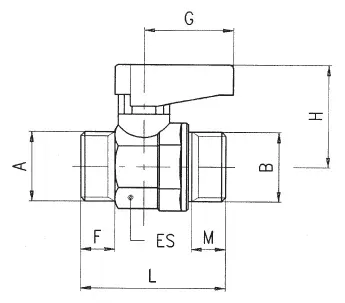

| Code | 3D Drawings | A | B | D.N. | ES | F | M | L | G | H | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06420 00 001 | Request access | 1/8 | 1/8 | 6 | 14-15 | 7 | 7 | 32 | 19 | 21 | 10 | |
| 06420 00 002 | Request access | 1/8 | 1/4 | 6 | 14-15 | 7 | 8 | 32 | 19 | 21 | 10 | |
| 06420 00 003 | Request access | 1/4 | 1/4 | 6 | 14-15 | 8 | 8 | 33 | 19 | 21 | 10 | |
| 06420 00 004 | Request access | 3/8 | 1/4 | 6 | 14-15 | 9 | 8 | 33 | 19 | 21 | 10 | |
| 06420 00 005 | Request access | 3/8 | 3/8 | 8 | 18-19 | 9 | 9 | 37 | 19 | 22 | 10 | |
| 06420 00 006 | Request access | 1/2 | 3/8 | 8 | 18-19 | 10 | 9 | 37 | 19 | 22 | 10 | |
| 06420 00 007 | Request access | 1/2 | 1/2 | 10 | 22-23 | 10 | 10 | 42 | 26 | 30,5 | 10 | |
| 06420 00 008 | Request access | 3/4 | 1/2 | 10 | 22-23 | 12 | 10 | 42 | 26 | 30,5 | 10 | |
| 06420 00 099 | Request access | 3/4 | 3/4 | 14 | 28-30 | 12 | 12 | 49 | 50 | 33 | 5 |
