6320

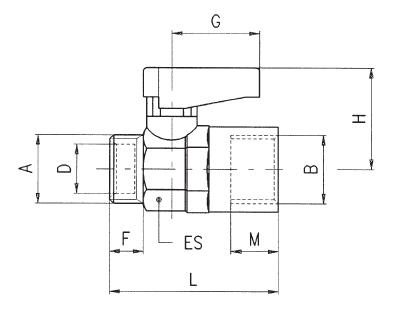

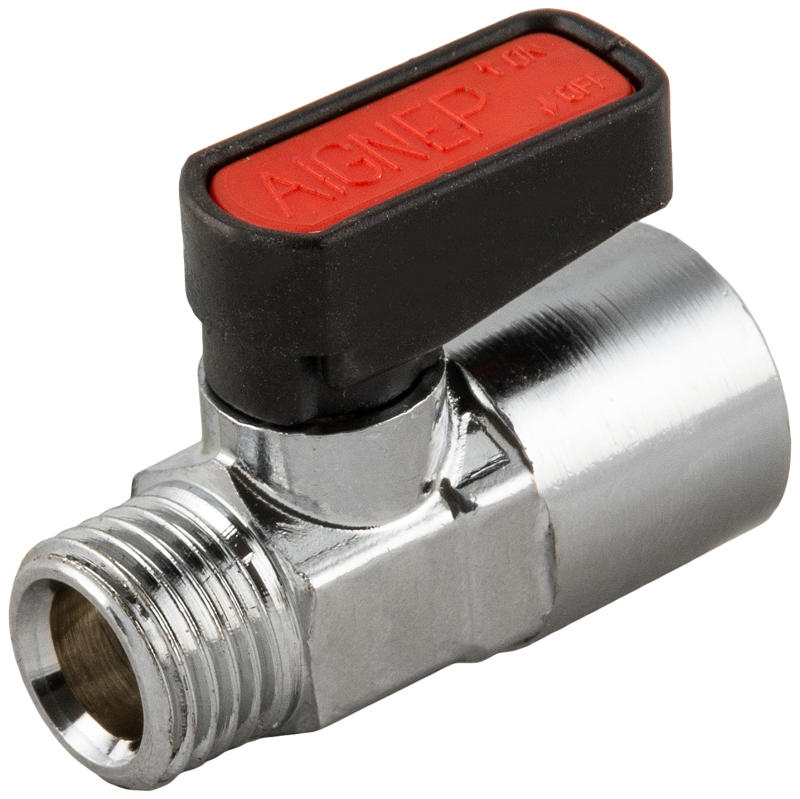

PARALLEL MALE GA ISO 228 - FEMALE RP ISO 7 VALVE
|
Code |
3D Drawings |
A |
B |
D.N. |
ES |
D |
F |
M |
L |
G |
H |
Bag |
|
06320 00 001
|
-
Request access
|
1/8 |
1/8 |
6 |
14-15 |
6,2 |
7 |
7,4 |
34,5 |
19 |
21 |
10 |
|
06320 00 002
|
-
Request access
|
1/4 |
1/8 |
6 |
14-15 |
8,2 |
8 |
7,4 |
35,5 |
19 |
21 |
10 |
|
06320 00 003
|
-
Request access
|
1/4 |
1/4 |
6 |
14-15 |
8,2 |
8 |
11 |
38 |
19 |
21 |
10 |
|
06320 00 004
|
-
Request access
|
3/8 |
3/8 |
8 |
18-19 |
10,2 |
9 |
11,4 |
41,5 |
19 |
22 |
10 |
|
06320 00 005
|
-
Request access
|
1/2 |
1/2 |
10 |
22-23 |
15,2 |
10 |
15 |
50 |
26 |
30,5 |
10 |
|
06320 00 066
|
-
Request access
|
3/4 |
3/4 |
14 |
28-30 |
18,2 |
12 |
16,3 |
56,5 |
50 |
33 |
5 |
