Filter
6037

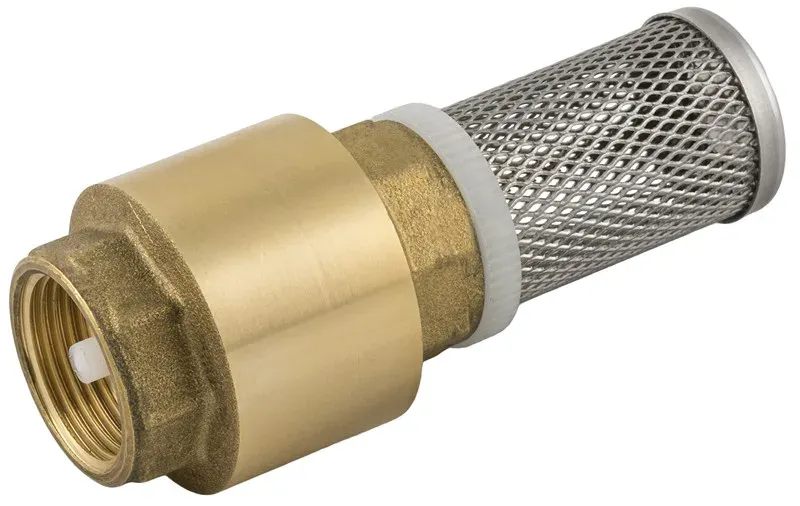

FINAL VALVE

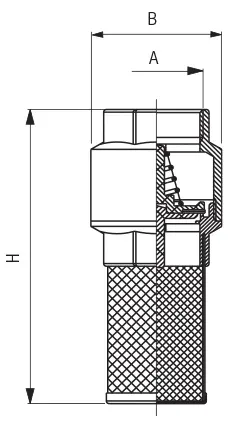

| Code | 3D Drawings | A | H | B | Filtration Threshold | Bag | |
|---|---|---|---|---|---|---|---|
| 06037 00 001 | Request access | 1/2 | 81 | 34 | 1.000 μm | 10 | |
| 06037 00 002 | Request access | 3/4 | 87 | 42 | 1.000 μm | 5 | |
| 06037 00 003 | Request access | 1" | 97 | 48 | 1.000 μm | 5 | |
| 06037 00 004 | Request access | 1" 1/4 | 110 | 60 | 1.000 μm | 4 | |
| 06037 00 005 | Request access | 1" 1/2 | 125 | 69 | 1.000 μm | 2 | |
| 06037 00 006 | Request access | 2" | 145 | 85 | 1.000 μm | 1 |
