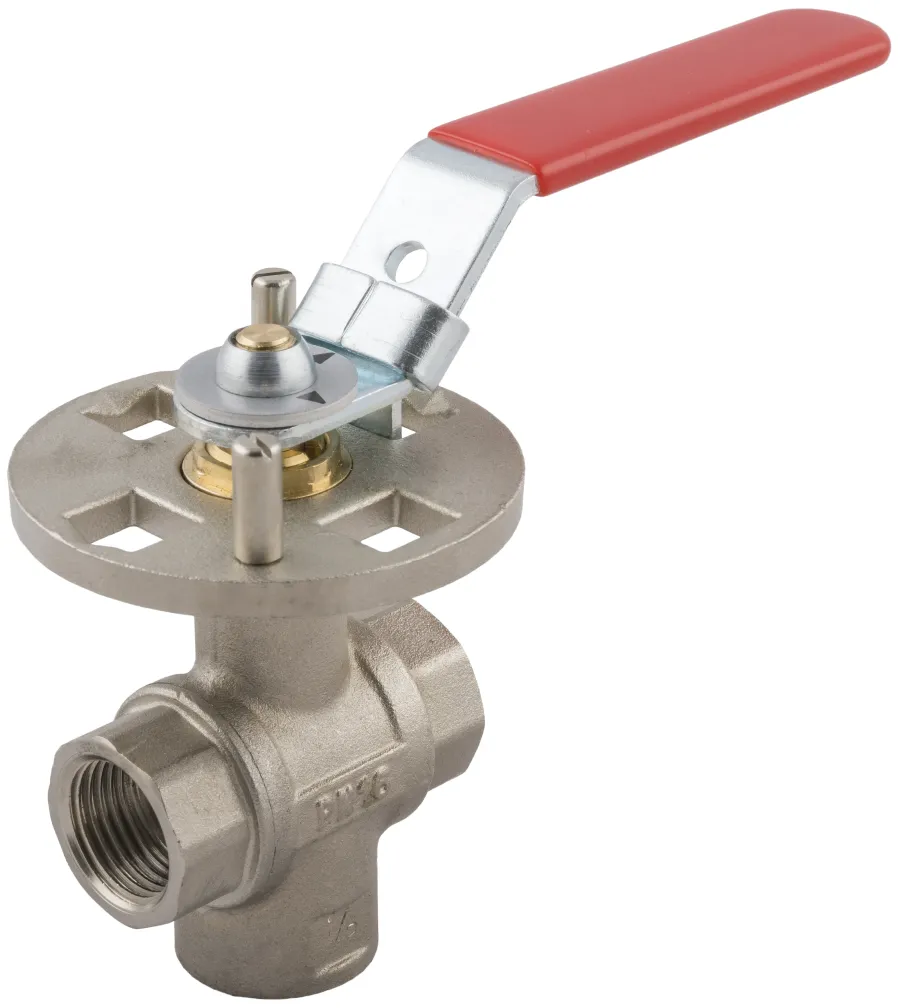

3 WAYS BALL VALVE “T” FEMALE LOCKABLE
prodotto___rs_ghilux_6765l_ghi-d
prodotto___rs_ghilux_6765l_ghi-f

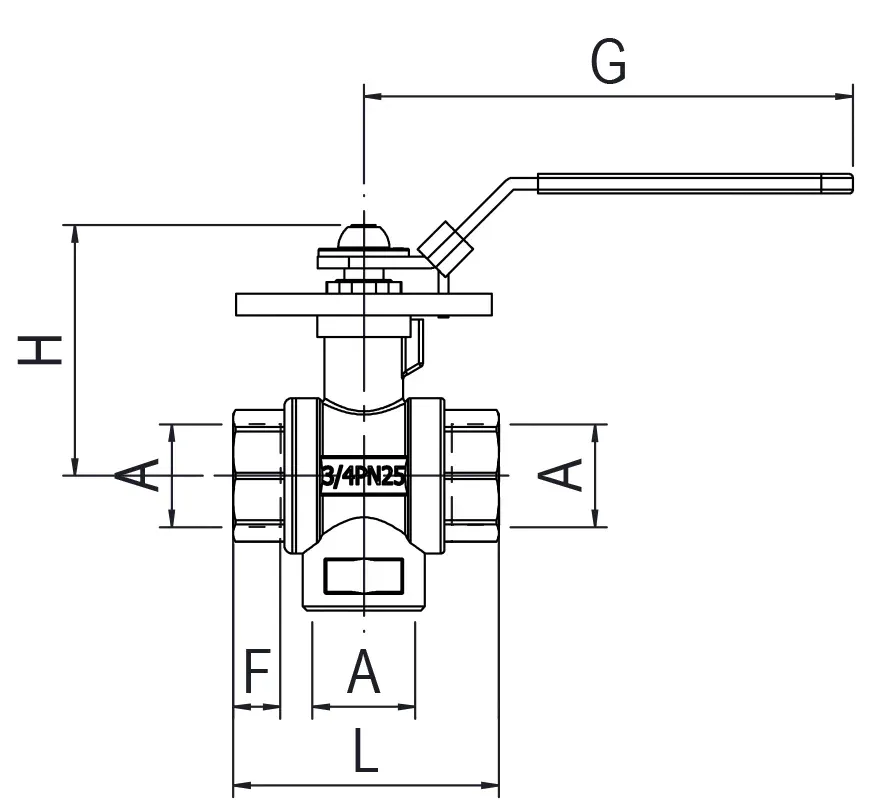

Code 3D Drawings A L DN F H G PN Bag
06765 L0 002 Request access 1/2 56 10 14 61.5 120 25 2
06765 L0 003 Request access 3/4 68 15 16 65 120 25 2
06765 L0 004 Request access 1" 78 20 17 69 120 25 2
06765 L0 005 Request access 1" 1/4 90 25 18 74 120 25 2
06765 L0 006 Request access 1" 1/2 100 32 19 80 120 25 2
06765 L0 007 Request access 2" 115 40 21 86 120 25 1
06765 L0 008 Request access 3" 180 68 25 132 246 25 1
