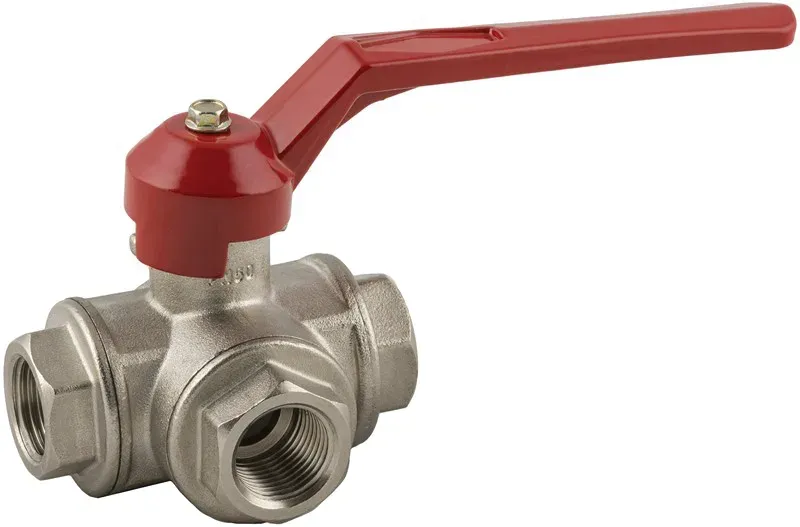

3 WAYS BALL VALVE “L” FEMALE G ISO 228

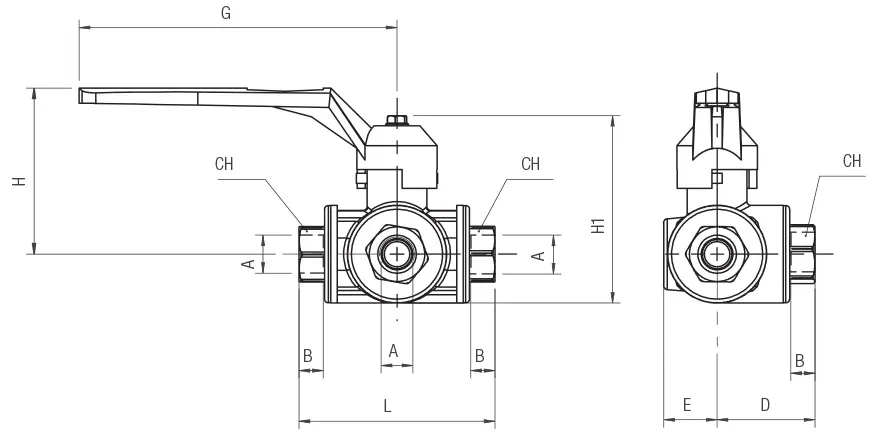

Code	3D Drawings	A	B	H	D	L	G	H1	CH	DN	PN 20°/40 °C	Bag
06074 V0 001	Request access	1/4	18	65	22	77	125	75	22	10	55	2
06074 V0 002	Request access	3/8	18	65	22	77	125	75	22	12	55	2
06074 V0 003	Request access	1/2	18	65	22	77	125	75	27	14	50	2
06074 V0 004	Request access	3/4	22	83	25	92	145	91	34	18	50	2
06074 V0 005	Request access	1"	23	96	30	104	170	105	41	23	45	2
06074 V0 006	Request access	1" 1/4	26	102	34	118	170	115	50	29	35	1
06074 V0 007	Request access	1" 1/2	30	109	40	138	170	128	57	36	35	1
06074 V0 008	Request access	2"	35	139	48	162	260	165	70	45	35	1
