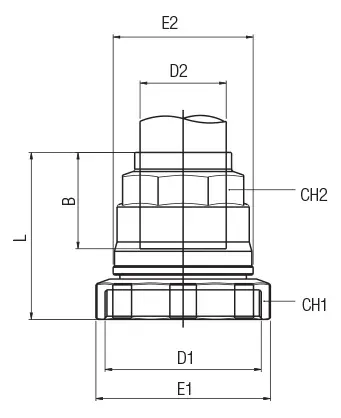

| Code | 3D Drawings | D1 | D2 | B | E1 | E2 | L | CH1 | CH2 | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 90620 00 001 | Request access | 25 | 20 | 31,5 | 43,5 | 34,5 | 48 | 42 | 30 | 5 | |
| 90620 00 002 | Request access | 32 | 20 | 31,5 | 54 | 34,5 | 48.5 | 52 | 30 | 5 | |
| 90620 00 003 | Request access | 32 | 25 | 38,5 | 54 | 42,5 | 55 | 52 | 35 | 5 | |
| 90620 00 004 | Request access | 40 | 20 | 31,5 | 65 | 34,5 | 50 | 63 | 30 | 4 | |
| 90620 00 005 | Request access | 40 | 25 | 38,5 | 65 | 42,5 | 56.5 | 63 | 35 | 4 | |
| 90620 00 006 | Request access | 40 | 32 | 46 | 65 | 52 | 63.5 | 63 | 45 | 3 | |
| 90620 00 011 | Request access | 50 | 25 | 38,5 | 75 | 42,5 | 55 | 73 | 35 | 1 | |
| 90620 00 007 | Request access | 50 | 32 | 46 | 75 | 52 | 63.5 | 73 | 45 | 1 | |
| 90620 00 008 | Request access | 50 | 40 | 52 | 75 | 63 | 69 | 73 | 55 | 1 | |
| 90620 00 011 A | Request access | 50 | 25 | 41 | 90 | 49 | 80 | 80 | 35 | 1 | |
| 90620 00 007 A | Request access | 50 | 32 | 45 | 90 | 58 | 84 | 80 | 45 | 1 | |
| 90620 00 008 A | Request access | 50 | 40 | 52 | 90 | 69 | 90 | 80 | 55 | 1 | |
| 90620 00 009 A | Request access | 63 | 40 | 52 | 95 | 63 | 82.5 | 92 | 55 | 1 | |
| 90620 00 010 A | Request access | 63 | 50 | 63,5 | 95 | 73 | 92.5 | 92 | 65 | 1 |
