7040

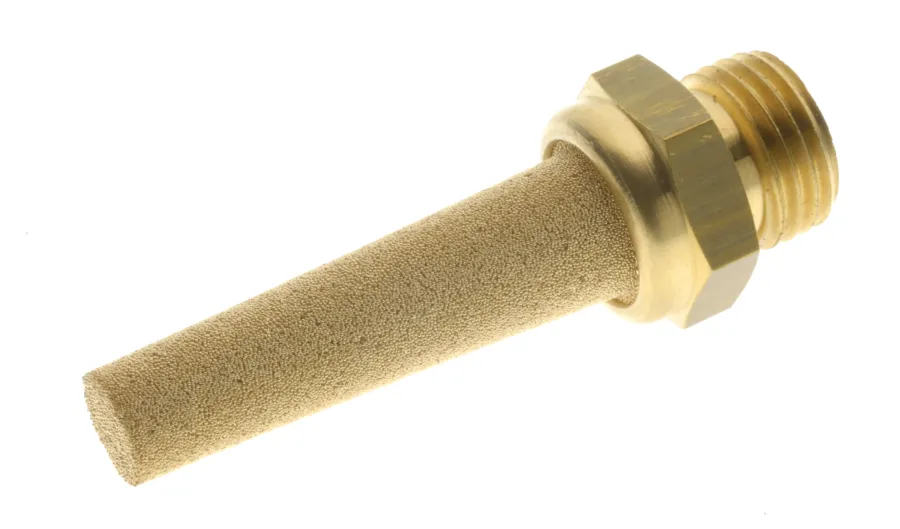

SILENCER

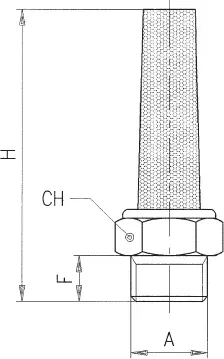

| Code | 3D Drawings | A | F | H | CH | Noise level in (dB) at 6 bar | °C Min | °C Max | Bar | Filtration Threshold | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 07040 00 001 | Request access | 1/8 | 6 | 44 | 13 | 76 | -10 | +80 | 12 | 36 μm | 10 | |
| 07040 00 002 | Request access | 1/4 | 7 | 50 | 16 | 75 | -10 | +80 | 12 | 36 μm | 10 | |
| 07040 00 003 | Request access | 3/8 | 8 | 54 | 19 | 88 | -10 | +80 | 12 | 36 μm | 10 | |
| 07040 00 004 | Request access | 1/2 | 9 | 67 | 24 | 89 | -10 | +80 | 12 | 36 μm | 10 | |
| 07040 00 005 | Request access | 3/4 | 9 | 65 | 30 | - | -10 | +80 | 12 | 36 μm | 10 |
