Filter
7080

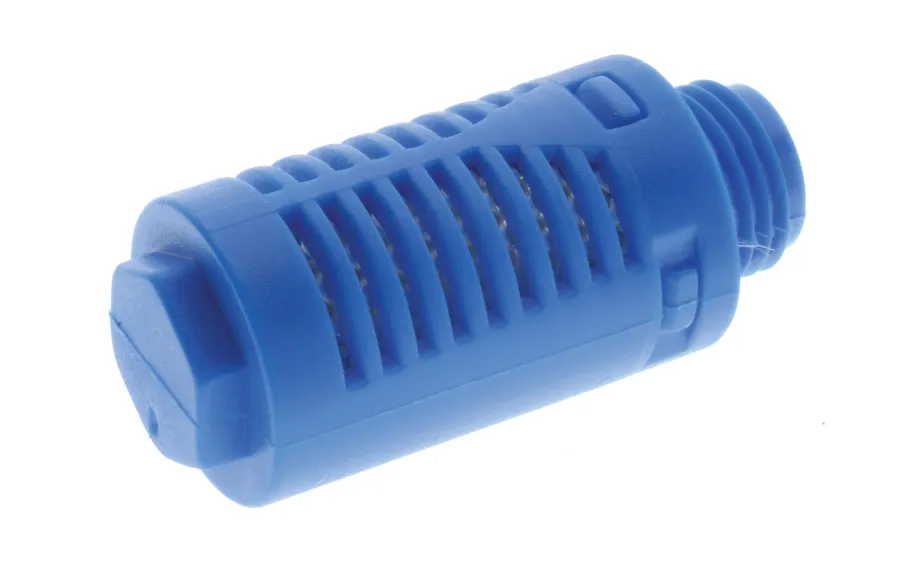

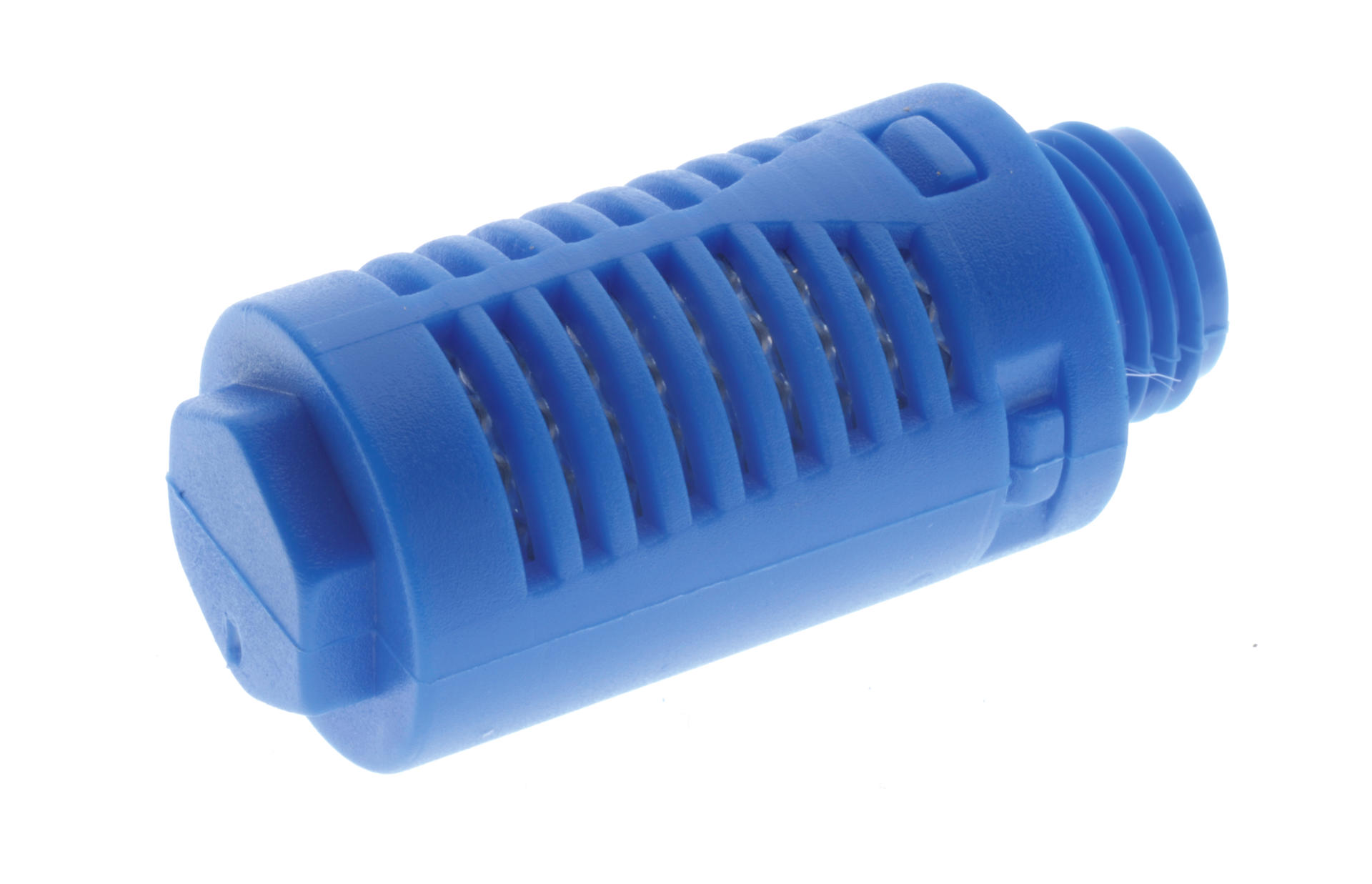

SILENCER MADE IN PA66 WITH FELT

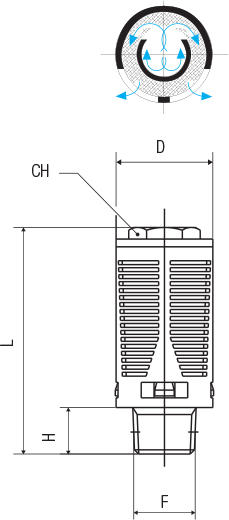

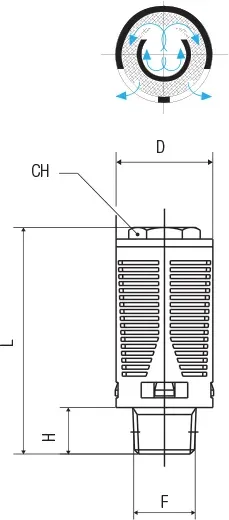

| Code | 3D Drawings | F | H | D | L | CH | Noise level in (dB) at 6 bar | °C Min | °C Max | Bar | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 07080 00 001 | Request access | 1/8 | 6 | 16 | 34 | 2 | 87 | -10 | +70 | 6 | 10 | |
| 07080 00 002 | Request access | 1/4 | 8 | 19 | 44 | 12 | 90 | -10 | +70 | 6 | 10 | |
| 07080 00 003 | Request access | 3/8 | 10 | 24 | 56 | 17 | 92 | -10 | +70 | 6 | 10 | |
| 07080 00 004 | Request access | 1/2 | 10 | 24 | 56 | 17 | 92 | -10 | +70 | 6 | 10 | |
| 07080 00 005 | Request access | 3/4 | 18 | 48 | 115 | - | - | -10 | +70 | 6 | 5 | |
| 07080 00 006 | Request access | 1" | 18 | 48 | 115 | - | - | -10 | +70 | 6 | 5 |
