7070

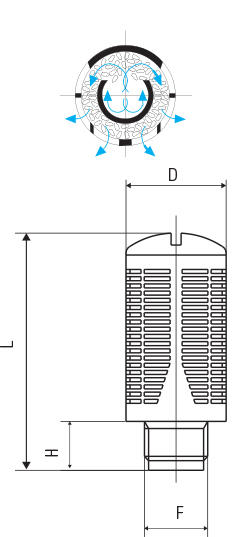

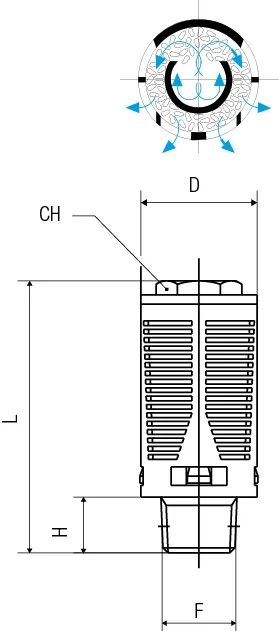

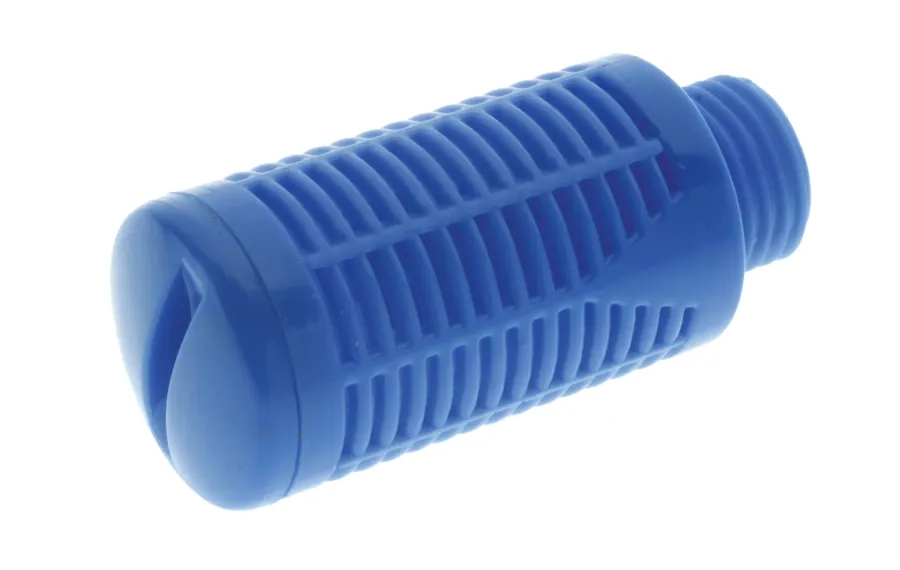

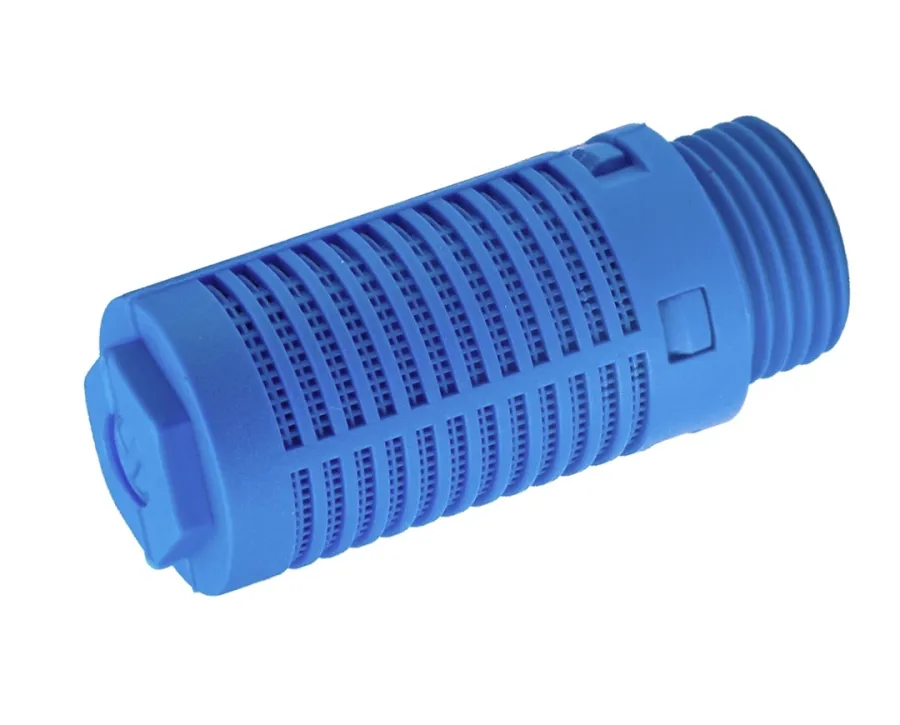

SILENCER MADE IN ACETALIC RESIN WITH PLASTIC SOUNDPROOFING MATERIAL
| Code | 3D Drawings | F | H | D | L | Noise level in (dB) at 6 bar | °C Min | °C Max | Bar | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 07070 00 001 | Request access | 1/8 | 6 | 15 | 32,5 | 87 | -10 | +50 | 6 | 10 | |
| 07070 00 002 | Request access | 1/4 | 8 | 19,5 | 43 | 84 | -10 | +50 | 6 | 10 | |
| 07070 00 003 | Request access | 3/8 | 11 | 24,5 | 58 | 90 | -10 | +50 | 6 | 10 | |
| 07070 00 004 | Request access | 1/2 | 11 | 24,5 | 58 | 90 | -10 | +50 | 6 | 10 | |
| 07070 00 005 | Request access | 3/4 | 18 | 48 | 115 | 91 | -10 | +50 | 6 | 5 | |
| 07070 00 006 | Request access | 1" | 18 | 48 | 115 | 90 | -10 | +50 | 6 | 5 |
