Filter
AS715

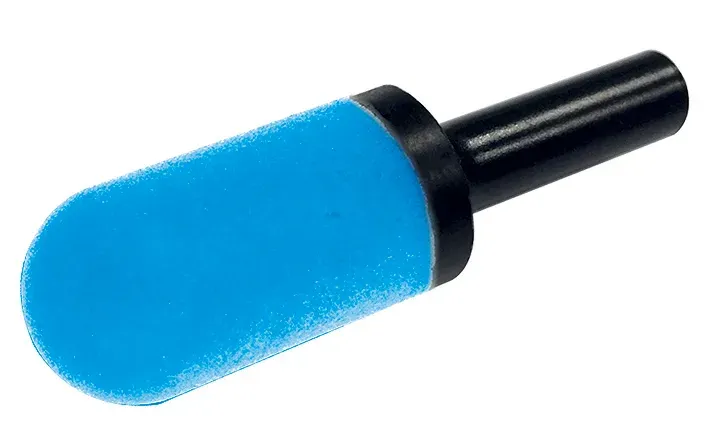

POROUS POLYETHYLENE SILENCER FOR PUSH-IN

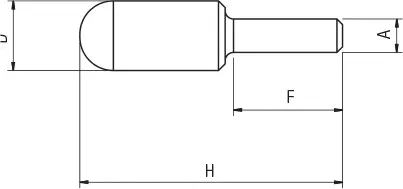

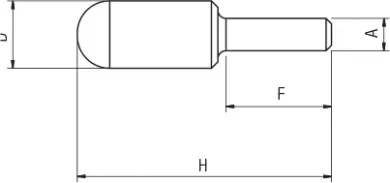

| Code | 3D Drawings | A | F | H±3 | D | °C Min | °C Max | Bar | Filtration Threshold | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AS715 00 001 | Request access | 4 | 14 | 32 | 7,5 | -20 | +80 | 10 | 50 μm | 10 | |
| AS715 00 002 | Request access | 6 | 22,2 | 47,5 | 13 | -20 | +80 | 10 | 50 μm | 10 | |
| AS715 00 003 | Request access | 8 | 22,8 | 46,5 | 13,5 | -20 | +80 | 10 | 50 μm | 10 | |
| AS715 00 004 | Request access | 10 | 27 | 58 | 15,5 | -20 | +80 | 10 | 50 μm | 10 | |
| AS715 00 005 | Request access | 12 | 28,5 | 82,5 | 18,5 | -20 | +80 | 10 | 50 μm | 10 |
