4030

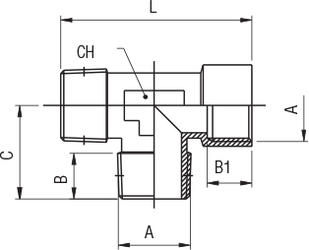

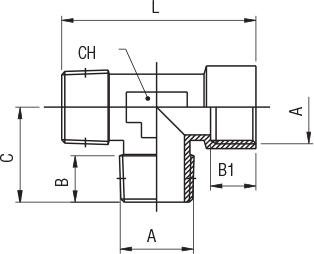

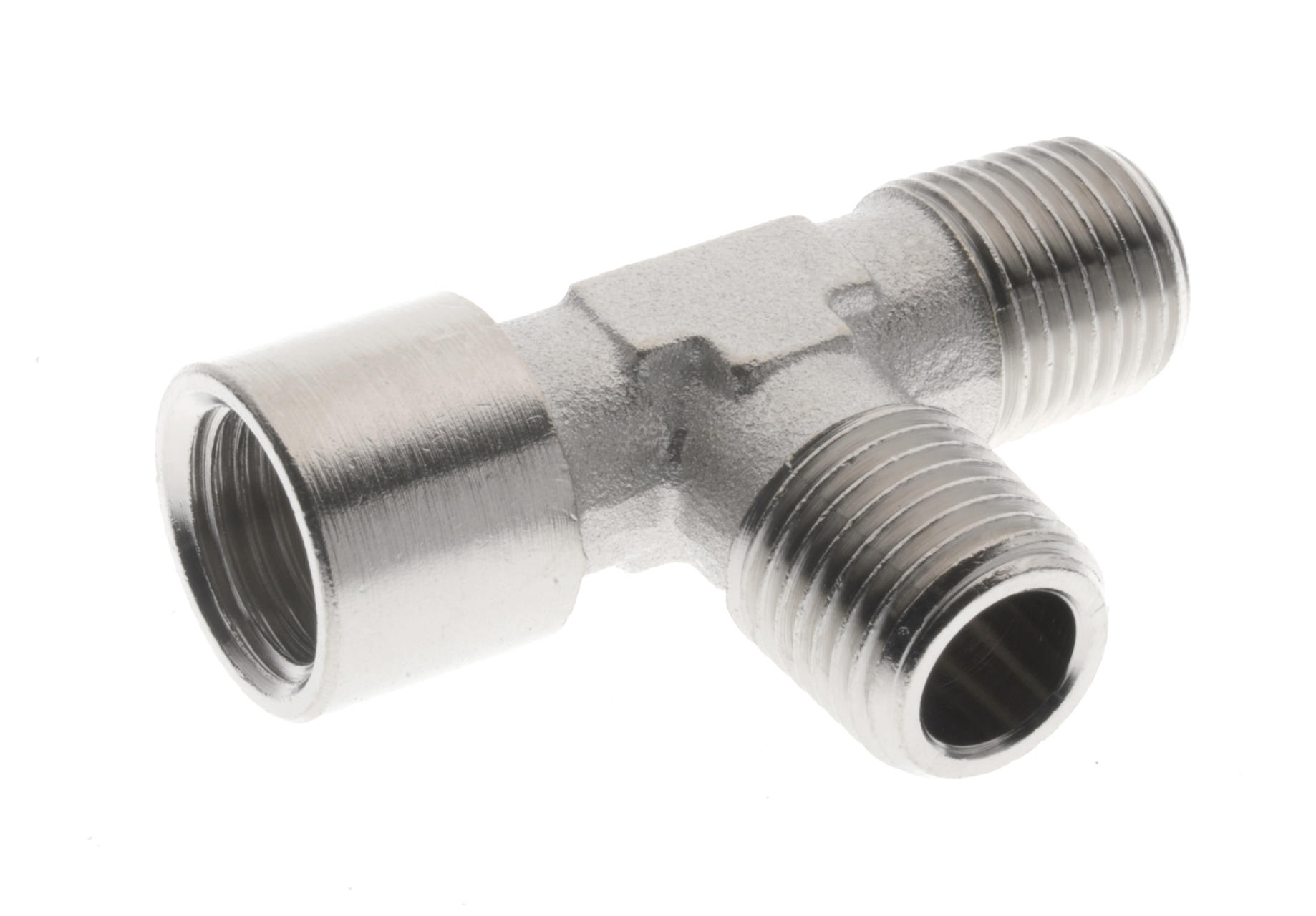

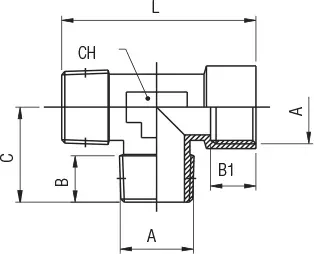

OFF SET FEMALE TEE
|
Code |
3D Drawings |
A |
B |
B1 |
C |
L |
CH |
Bag |
|
04030 00 01 02 NB
|
-
Request access
|
1/8 |
8 |
8,5 |
17,5 |
37 |
12 |
10 |
|
04030 00 01 03 NB
|
-
Request access
|
1/4 |
11 |
11 |
23 |
47,5 |
13 |
10 |
|
04030 00 01 04 NB
|
-
Request access
|
3/8 |
11,5 |
12 |
25,5 |
52,5 |
16 |
10 |
|
04030 00 01 05 NB
|
-
Request access
|
1/2 |
14 |
15 |
29,5 |
61,5 |
20 |
10 |
|
04030 00 01 07 NT
|
-
Request access
|
3/4 |
14,5 |
16,5 |
32 |
68,5 |
27 |
5 |
|
04030 00 01 09 NT
|
-
Request access
|
1" |
16,8 |
19 |
39 |
84 |
30 |
5 |
