Filter
2116

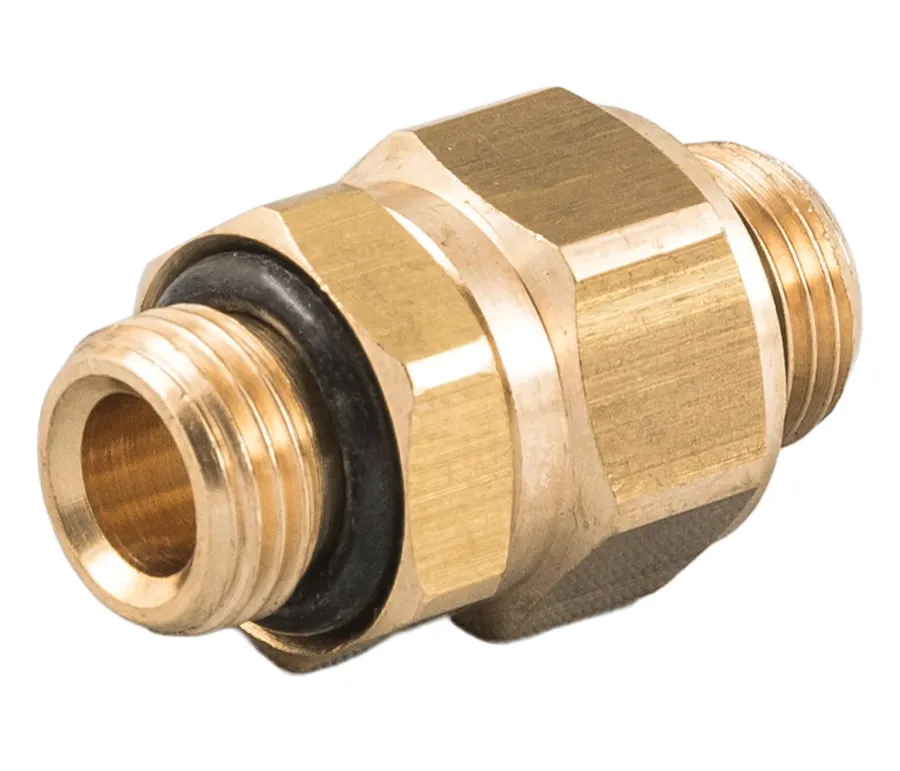

MALE SWIVEL NIPPLE WITH OR (PARALLEL)
Article not nichel-plated.

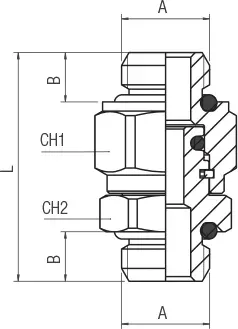

| Code | 3D Drawings | A | B | L | CH1 | CH2 | °C Min | °C Max | Bar Min | Bar Max | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02116 GI 001 | Request access | 1/8 | 5,5 | 25 | 14 | 13 | -20 | +80 | -0,99 | +15 | 10 | |
| 02116 GI 002 | Request access | 1/4 | 7 | 29 | 17 | 16 | -20 | +80 | -0,99 | +15 | 10 | |
| 02116 GI 003 | Request access | 3/8 | 8 | 33 | 20 | 20 | -20 | +80 | -0,99 | +15 | 10 | |
| 02116 GI 004 | Request access | 1/2 | 9,5 | 37 | 25 | 25 | -20 | +80 | -0,99 | +15 | 10 | |
| 02116 GI 005 | Request access | 3/4 | 11 | 48,5 | 34 | 34 | -20 | +80 | -0,99 | +15 | 10 | |
| 02116 GI 006 | Request access | 1" | 12 | 52 | 40 | 40 | -20 | +80 | -0,99 | +15 | 10 |
