3015

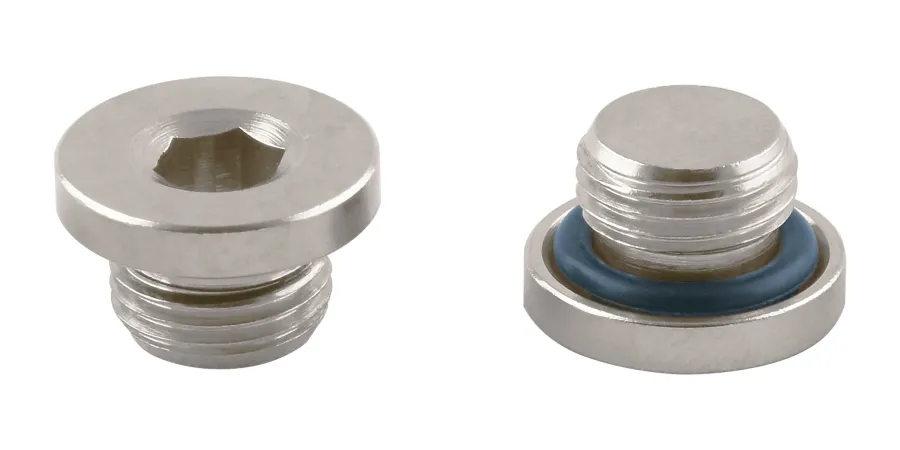

MALE PLUG (PARALLEL) WITH HEXAGON EMBEDDED AND NBR O-RING
| Code | 3D Drawings | A | B | L | D | CH | °C Min | °C Max | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|
| 03015 00 005 | Request access | M5 | 4 | 6 | 8 | 2 | -20 | +80 | 10 | |
| 03015 00 011 | Request access | M7 | 5 | 7,5 | 9,5 | 3 | -20 | +80 | 10 | |
| 03015 00 001 | Request access | 1/8 | 6 | 8,5 | 14 | 5 | -20 | +80 | 10 | |
| 03015 00 002 | Request access | 1/4 | 8 | 11 | 17 | 6 | -20 | +80 | 10 | |
| 03015 00 003 | Request access | 3/8 | 9 | 12,5 | 20 | 8 | -20 | +80 | 10 | |
| 03015 00 004 | Request access | 1/2 | 10 | 13,5 | 25 | 10 | -20 | +80 | 10 | |
| 03015 00 006 | Request access | M8X1 | 5,4 | 8 | 12 | 4 | -20 | +80 | 10 | |
| 03015 00 007 | Request access | M10X1 | 6 | 8,5 | 14 | 5 | -20 | +80 | 10 | |
| 03015 00 008 | Request access | M12X1,25 | 8 | 11 | 15 | 6 | -20 | +80 | 10 | |
| 03015 00 009 | Request access | 3/4 | 11,1 | 15,5 | 34 | 17 | -20 | +80 | 10 | |
| 03015 00 010 | Request access | 1" | 11,8 | 16 | 38 | 19 | -20 | +80 | 10 |
