6047

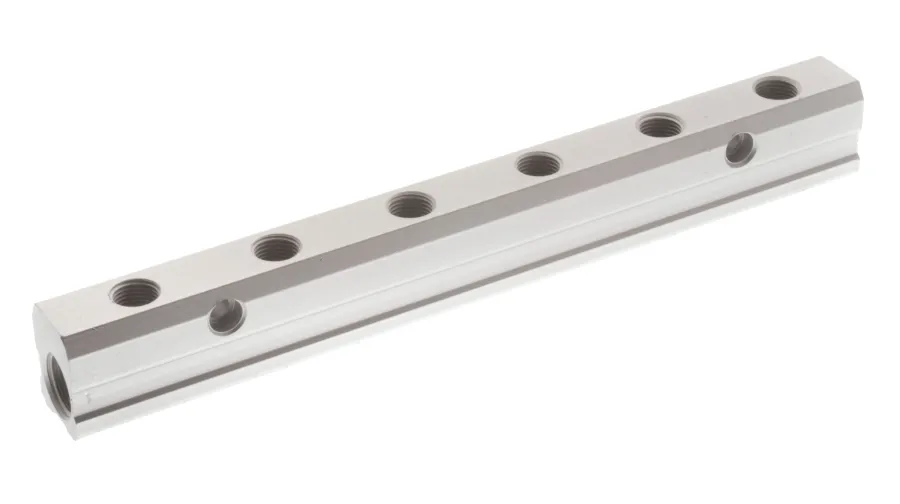

ALUMINIUM DISTRIBUTION MANIFOLD

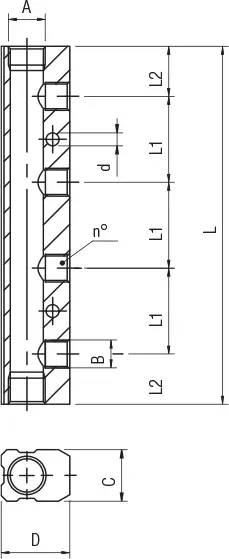

| Code | 3D Drawings | A | B | n° | C | D | L1 | L2 | L | d | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06047 00 11 AJ AG | Request access | 1/4 | 1/8 | 2 | 18 | 24 | 30 | 17,5 | 65 | 4,5 | 5 | |
| 06047 00 11 AK AG | Request access | 1/4 | 1/8 | 3 | 18 | 24 | 30 | 17,5 | 95 | 4,5 | 5 | |
| 06047 00 11 AW AG | Request access | 1/4 | 1/8 | 4 | 18 | 24 | 30 | 17,5 | 125 | 4,5 | 5 | |
| 06047 00 11 BA AG | Request access | 1/4 | 1/8 | 5 | 18 | 24 | 30 | 17,5 | 155 | 4,5 | 5 | |
| 06047 00 11 BB AG | Request access | 1/4 | 1/8 | 6 | 18 | 24 | 30 | 17,5 | 185 | 4,5 | 5 | |
| 06047 00 11 BC AG | Request access | 3/8 | 1/4 | 2 | 22 | 30 | 36 | 20 | 76 | 5,5 | 5 | |
| 06047 00 11 BD AG | Request access | 3/8 | 1/4 | 3 | 22 | 30 | 36 | 20 | 112 | 5,5 | 5 | |
| 06047 00 11 BE AG | Request access | 3/8 | 1/4 | 4 | 22 | 30 | 36 | 20 | 148 | 5,5 | 5 | |
| 06047 00 11 BF AG | Request access | 3/8 | 1/4 | 5 | 22 | 30 | 36 | 20 | 184 | 5,5 | 5 | |
| 06047 00 11 BG AG | Request access | 3/8 | 1/4 | 6 | 22 | 30 | 36 | 20 | 220 | 5,5 | 5 | |
| 06047 00 11 ES AG | Request access | 1/2 | 3/8 | 2 | 26 | 35 | 40 | 25 | 90 | 5,5 | 5 | |
| 06047 00 11 ET AG | Request access | 1/2 | 3/8 | 3 | 26 | 35 | 40 | 25 | 130 | 5,5 | 5 | |
| 06047 00 11 EU AG | Request access | 1/2 | 3/8 | 4 | 26 | 35 | 40 | 25 | 170 | 5,5 | 5 | |
| 06047 00 11 EV AG | Request access | 1/2 | 3/8 | 5 | 26 | 35 | 40 | 25 | 210 | 5,5 | 5 | |
| 06047 00 11 EZ AG | Request access | 1/2 | 3/8 | 6 | 26 | 35 | 40 | 25 | 250 | 5,5 | 5 |
