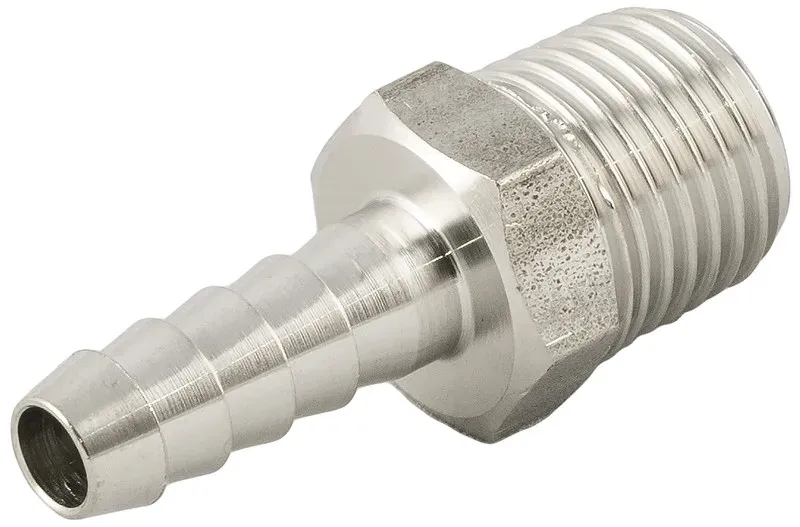

MALE HOSE ADAPTER (TAPER)

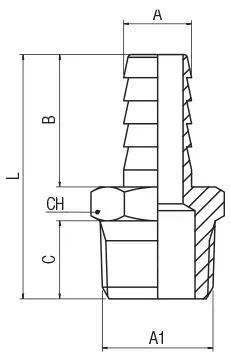

Code	3D Drawings	A	A1	B	C	L	CH	Bag
62340 00 44 BS 00	Request access	6	1/8	19,5	7,5	32	11	10
62340 00 44 BZ 00	Request access	7	1/8	19,5	7,5	32	11	10
62340 00 44 BX 00	Request access	7	1/4	19,5	11	35,5	14	10
62340 00 44 BJ 00	Request access	8	1/4	19,5	11	35,5	14	10
62340 00 44 CB 00	Request access	9	1/4	19,5	11	35,5	14	10
62340 00 44 CC 00	Request access	9	3/8	19,5	11,5	36	17	10
62340 00 44 CE 00	Request access	10	1/8	19,5	7,5	32	12	10
62340 00 44 CF 00	Request access	10	1/4	19,5	11	35,5	14	10
62340 00 44 CG 00	Request access	10	3/8	19,5	11,5	36	17	10
62340 00 44 CH 00	Request access	10	1/2	19,5	14	39	22	10
62340 00 44 CI 00	Request access	12	1/4	19,5	11	35,5	14	10
62340 00 44 CL 00	Request access	12	3/8	19,5	11,5	36	17	10
62340 00 44 CM 00	Request access	12	1/2	19,5	14	39	22	10
62340 00 44 CN 00	Request access	14	3/8	19,5	11,5	36	17	10
62340 00 44 DB 00	Request access	14	1/2	19,5	14	39	22	10
62340 00 44 CR 00	Request access	16	1/2	19,5	14	39	22	10
62340 00 44 CZ 00	Request access	18	1/2	19,5	14	39	22	10
62340 00 44 CX 00	Request access	18	3/4	19,5	16,5	43,5	27	10
62340 00 44 CJ 00	Request access	20	1/2	19,5	14	39	22	10
62340 00 44 DH 00	Request access	20	3/4	19,5	13,5	40	27	10
