Filter

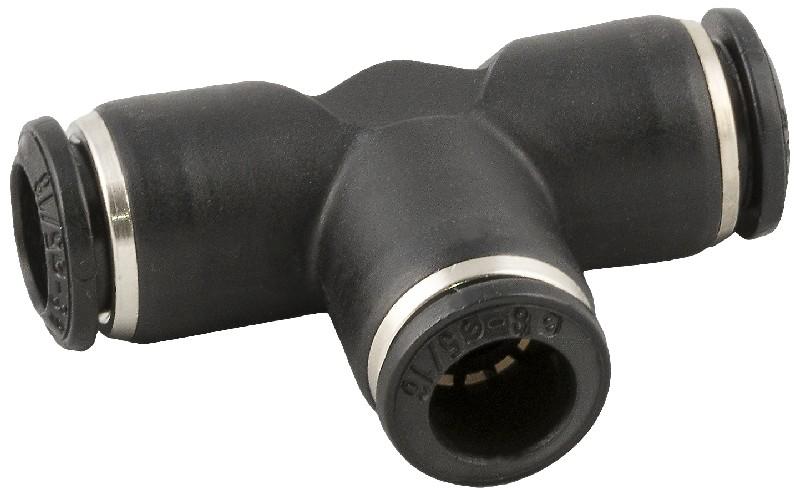

TEE CONNECTOR

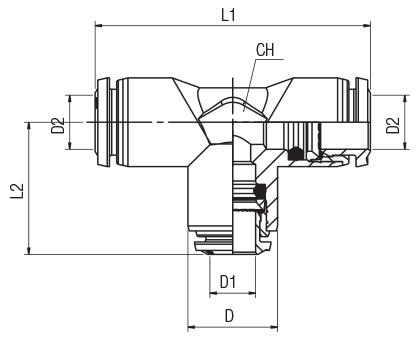

Code	3D Drawings	Tube	Tube	Tube	L1	L2	CH	D	D1	D2	Bag
55230 00 002	Request access	4	4	4	33	16,5	9	10	4	4	10
55230 00 019	Request access	4	6	4	40	20,5	11	12.5	6	4	10
55230 00 003	Request access	5	5	5	40	20	11	12	5	5	10
55230 00 004	Request access	6	6	6	41	20,5	11	12	6	6	10
55230 00 009	Request access	6	4	6	44	20	11	12.5	4	6	10
55230 00 018	Request access	6	8	6	45	22,5	13	14	8	6	10
55230 00 005	Request access	8	8	8	44	22	13	14	8	8	10
55230 00 021	Request access	8	4	8	45	22	13	14	4	8	10
55230 00 010	Request access	8	6	8	45	22,5	13	14	6	8	10
55230 00 015	Request access	8	10	8	52	26,5	16	17	10	8	10
55230 00 006	Request access	10	10	10	53	26,5	16	17	10	10	10
55230 00 011	Request access	10	8	10	53	26	16	17	8	10	10
55230 00 017	Request access	10	12	10	61,5	30	19	20	12	10	10
55230 00 007	Request access	12	12	12	61,5	30	19	20	12	12	10
55230 00 012	Request access	12	10	12	61,5	30	19	20	10	12	10
55230 00 008	Request access	14	14	14	61	30,5	20	21	14	14	10
55230 00 016	Request access	14	8	14	61	30,5	20	21	8	14	10
55230 00 013	Request access	14	10	14	61	30,5	20	21	10	14	10
55230 00 014	Request access	14	12	14	61	30,5	20	21	12	14	10
55230 00 020	Request access	16	16	16	65,6	32,8	20	24	16	16	10
