1020

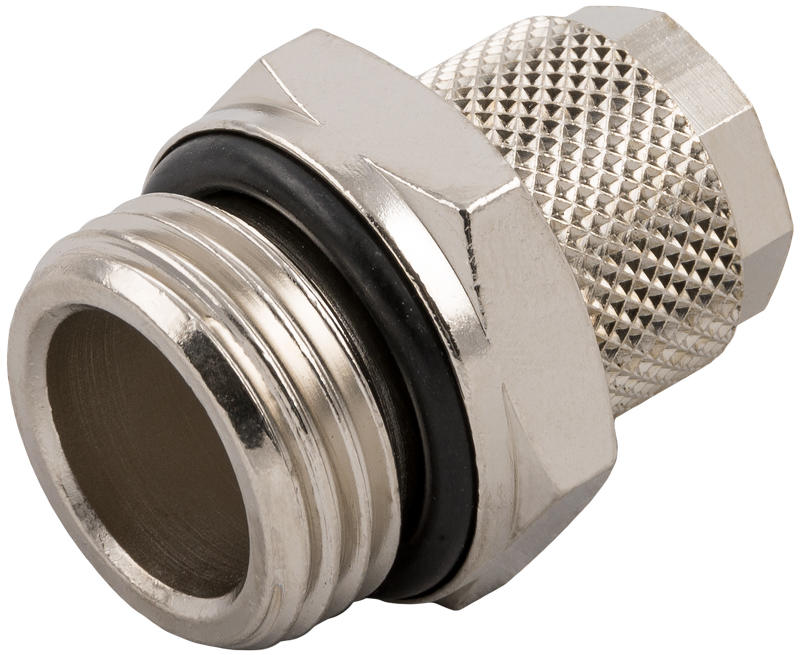

STRAIGHT MALE ADAPTOR (PARALLEL)
Technical characteristics / catalogAignep Scan Labels Certifications

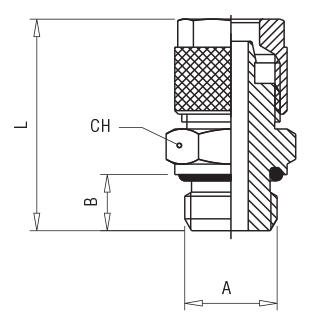

| Code | Draw | Tube | A | B | L | CH | Bag |
|---|---|---|---|---|---|---|---|
| 01020 00 001 | Download | 4/2,7 | 1/8 | 5,4 | 23 | 13 | 10 |
| 01020 00 002 | Download | 5/3 | 1/8 | 5,4 | 25,1 | 13 | 10 |
| 01020 00 003 | Download | 6/4 | 1/8 | 5,4 | 25,1 | 13 | 10 |
| 01020 00 004 | Download | 6/4 | 1/4 | 7,1 | 28,1 | 16 | 10 |
| 01020 00 005 | Download | 6/4 | 3/8 | 8,1 | 29,1 | 19 | 10 |
| 01020 00 006 | Download | 6/4 | 1/2 | 9,6 | 32 | 24 | 10 |
| 01020 00 007 | Download | 8/6 | 1/8 | 5,4 | 26,4 | 14 | 10 |
| 01020 00 008 | Download | 8/6 | 1/4 | 7,1 | 29,4 | 16 | 10 |
| 01020 00 009 | Download | 8/6 | 3/8 | 8,1 | 30,4 | 19 | 10 |
| 01020 00 010 | Download | 8/6 | 1/2 | 9,6 | 32 | 24 | 10 |
| 01020 00 020 | Download | 10/6,5 | 1/4 | 7,1 | 31,5 | 16 | 10 |
| 01020 00 021 | Download | 10/6,5 | 3/8 | 8,1 | 32,5 | 19 | 10 |
| 01020 00 011 | Download | 10/8 | 1/8 | 5,4 | 28,5 | 14 | 10 |
| 01020 00 012 | Download | 10/8 | 1/4 | 7,1 | 31,5 | 16 | 10 |
| 01020 00 013 | Download | 10/8 | 3/8 | 8,1 | 32,5 | 19 | 10 |
| 01020 00 014 | Download | 10/8 | 1/2 | 9,6 | 34,5 | 24 | 10 |
| 01020 00 022 | Download | 12/8 | 3/8 | 8,1 | 32,5 | 19 | 10 |
| 01020 00 023 | Download | 12/8 | 1/2 | 9,6 | 34,5 | 24 | 10 |
| 01020 00 015 | Download | 12/10 | 3/8 | 8,1 | 34 | 19 | 10 |
| 01020 00 016 | Download | 12/10 | 1/2 | 9,6 | 36 | 24 | 10 |
| 01020 00 017 | Download | 15/12,5 | 1/2 | 9,6 | 38 | 24 | 10 |
