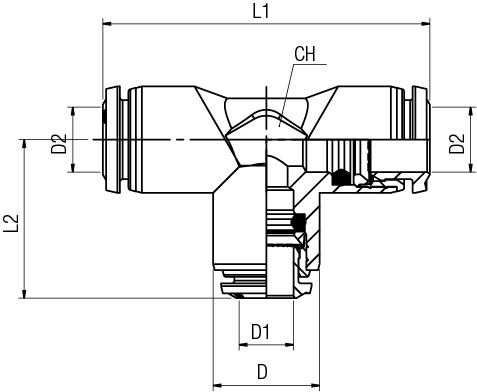

Code  Draw Tube L1 L2 CH D D1 D2 Bag
85230 00 001     Download 1/8 31 15.5 9 10 3 3 10
85230 00 002     Download 5/32 33 16.5 9 10 4 4 10
85230 00 019     Download 5/32-1/4-5/32 40 20.5 11 12.5 6 4 10
85230 00 009     Download 1/4-5/32-1/4 41 20 11 12.5 4 6 10
85230 00 004     Download 1/4 41 20.5 11 12.5 6 6 10
85230 00 010     Download 5/16-1/4-5/16 45 22.5 13 14 6 8 10
85230 00 005     Download 5/16 44 22 13 14 8 8 10
85230 00 015     Download 5/16-3/8-5/16 52 26.5 16 17 10 8 10
85230 00 011     Download 3/8-5/16-3/8 53 26 16 17 8 10 10
85230 00 006     Download 3/8 53 26.5 16 17 10 10 10
85230 00 017     Download 3/8-1/2-3/8 59.5 30.5 19 20 12 10 10
85230 00 012     Download 1/2-3/8-1/2 61.5 30 19 20 10 12 10
85230 00 007     Download 1/2 61.5 30 19 20 12 12 10
