60110X

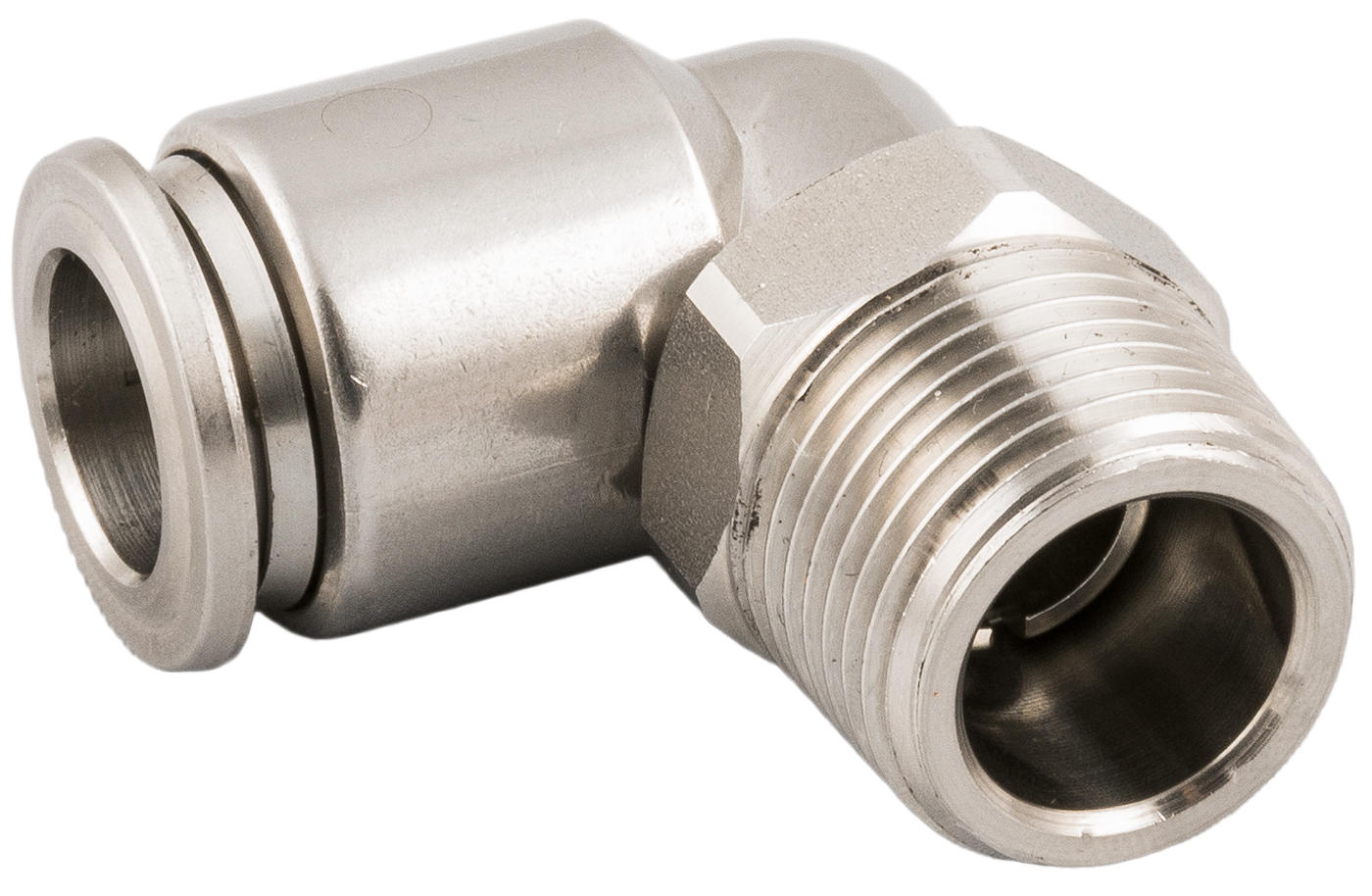

ORIENTING ELBOW MALE ADAPTOR (TAPER)
Technical characteristics / catalogAignep Scan Labels Certifications

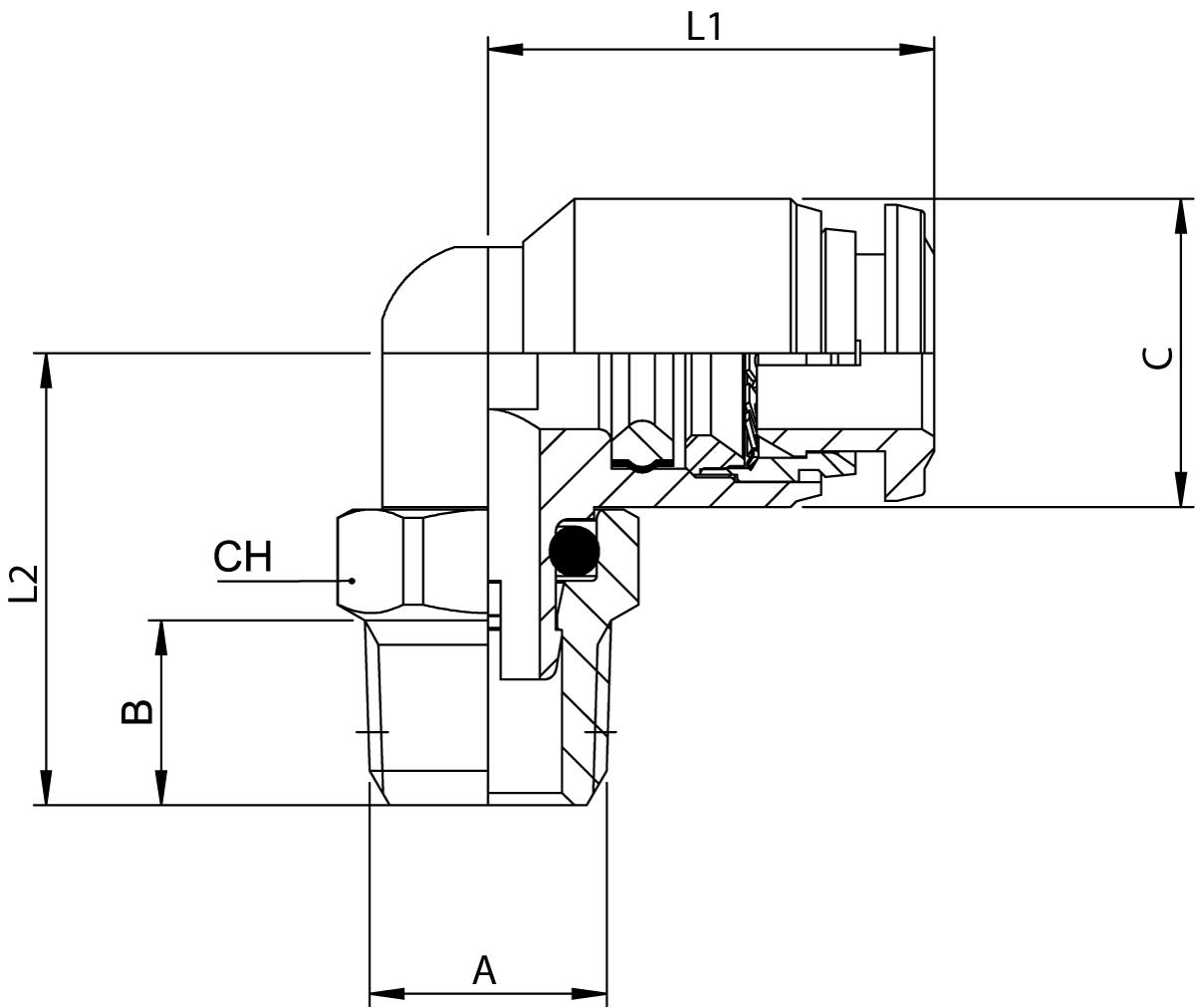

| Code | Draw | Tube | A | B | C | L1 | L2 | CH | Bag |
|---|---|---|---|---|---|---|---|---|---|
| 60110 X0 003 | Download | 6 | 1/8 | 7,5 | 12,5 | 18 | 18,5 | 11 | 5 |
| 60110 X0 004 | Download | 6 | 1/4 | 11 | 12,5 | 18 | 22,5 | 14 | 5 |
| 60110 X0 005 | Download | 8 | 1/8 | 7,5 | 14,5 | 20 | 23 | 12 | 5 |
| 60110 X0 006 | Download | 8 | 1/4 | 11 | 14,5 | 20 | 23,5 | 14 | 5 |
| 60110 X0 007 | Download | 10 | 1/4 | 11 | 17 | 23.5 | 28,5 | 15 | 2 |
| 60110 X0 008 | Download | 10 | 3/8 | 11,5 | 17 | 23.5 | 26 | 17 | 2 |
| 60110 X0 009 | Download | 10 | 1/2 | 14 | 17 | 23.5 | 29,5 | 22 | 2 |
| 60110 X0 010 | Download | 12 | 3/8 | 11,5 | 20,5 | 27.5 | 32,5 | 17 | 2 |
| 60110 X0 011 | Download | 12 | 1/2 | 14 | 20,5 | 27.5 | 31,5 | 22 | 2 |
