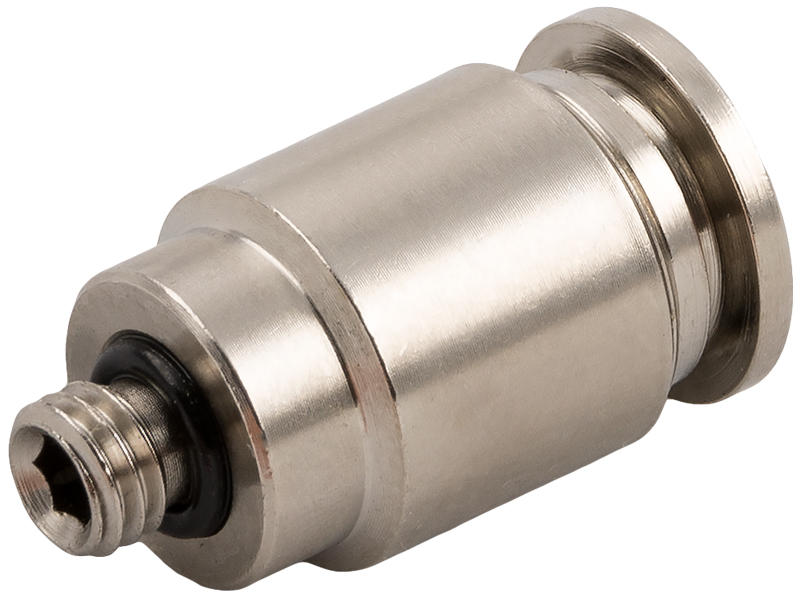

57010

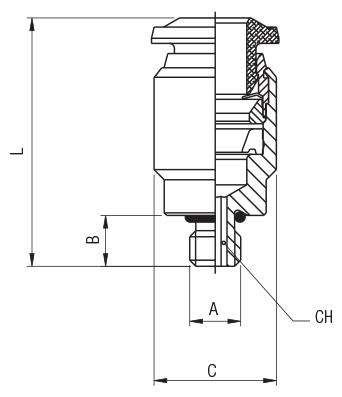

Code | Draw | Tube | A | B | C | L | CH | Bag | ||
---|---|---|---|---|---|---|---|---|---|---|
57010 00 001 | Download | 4 | M5 | 3,6 | 10 | 21 | 2,5 | 10 | ||
57010 00 009 | Download | 4 | M7X1 | 4,8 | 10 | 21 | 2,5 | 10 | ||
57010 00 007 | Download | 6 | M5 | 3,6 | 12 | 24,5 | 2,5 | 10 | ||
57010 00 011 | Download | 6 | M6x1 | 3,6 | 12,5 | 24 | 2,5 | 10 |
Code | Draw | Tube | A | B | C | L | CH | Bag |
---|---|---|---|---|---|---|---|---|
57010 00 001 | Download | 4 | M5 | 3,6 | 10 | 21 | 2,5 | 10 |
57010 00 009 | Download | 4 | M7X1 | 4,8 | 10 | 21 | 2,5 | 10 |
57010 00 007 | Download | 6 | M5 | 3,6 | 12 | 24,5 | 2,5 | 10 |
57010 00 011 | Download | 6 | M6x1 | 3,6 | 12,5 | 24 | 2,5 | 10 |
