Push-In Fittings>

55000 Series

55350

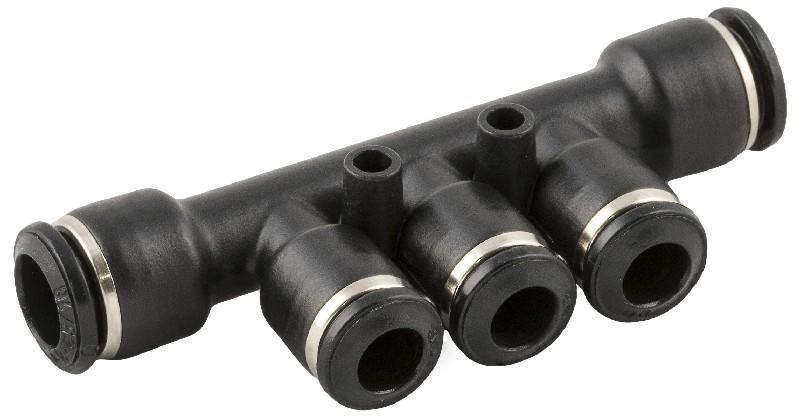

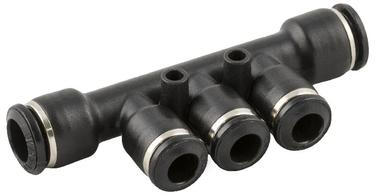

REDUCTION MANIFOLD

Technical characteristics / catalog Aignep Scan Labels Certifications

REDUCTION MANIFOLD

REDUCTION MANIFOLD

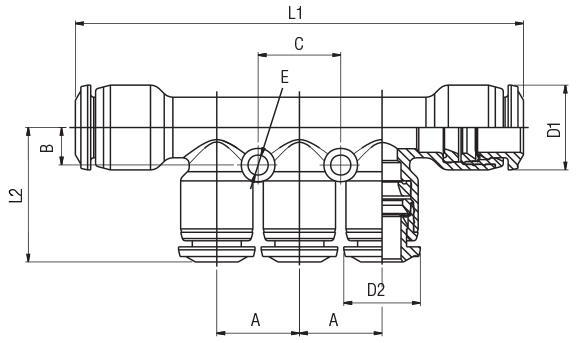

Code			Draw	Tube	Tube	A	B	L1	L2	C	D1	D2	E	Bag
55350 00 001			Download	6	4	13,5	6	74	22	13,5	14	12	3.3	10
55350 00 002			Download	8	4	13,5	6	73	22	13,5	14	12	3.3	10
55350 00 003			Download	8	6	13,5	6	73	22.5	13,5	14	12.5	3.3	10
55350 00 004			Download	10	6	15	7	83	24	15	17	14	3.3	10
55350 00 005			Download	10	8	15	7	83	23	15	17	14	3.3	10

Code	Draw	Tube	Tube	A	B	L1	L2	C	D1	D2	E	Bag
55350 00 001	Download	6	4	13,5	6	74	22	13,5	14	12	3.3	10
55350 00 002	Download	8	4	13,5	6	73	22	13,5	14	12	3.3	10
55350 00 003	Download	8	6	13,5	6	73	22.5	13,5	14	12.5	3.3	10
55350 00 004	Download	10	6	15	7	83	24	15	17	14	3.3	10
55350 00 005	Download	10	8	15	7	83	23	15	17	14	3.3	10
