55111

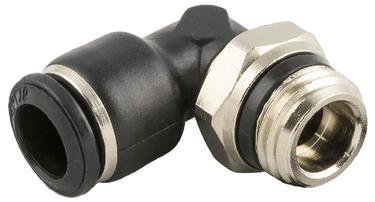

ORIENTING ELBOW MALE ADAPTOR “UNIVERSAL SHORT”
Technical characteristics / catalogAignep Scan Labels Certifications

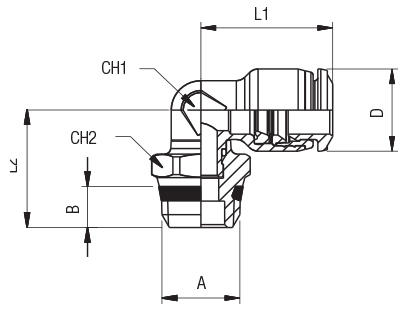

| Code | Draw | Tube | A | B | L1 | L2 | CH1 | CH2 | D | Bag |
|---|---|---|---|---|---|---|---|---|---|---|
| 55111 00 001 | Download | 4 | 1/8 | 5,5 | 16.5 | 16.5 | 7 | 13 | 10 | 10 |
| 55111 00 002 | Download | 4 | 1/4 | 7 | 16.5 | 18 | 7 | 15 | 10 | 10 |
| 55111 00 003 | Download | 5 | 1/8 | 5,5 | 20 | 17,4 | 9 | 13 | 12 | 10 |
| 55111 00 004 | Download | 6 | 1/8 | 5,5 | 20.5 | 17,4 | 9 | 13 | 12 | 10 |
| 55111 00 005 | Download | 6 | 1/4 | 7 | 20.5 | 18,9 | 9 | 15 | 12 | 10 |
| 55111 00 006 | Download | 6 | 3/8 | 7,5 | 20.5 | 20 | 9 | 17 | 12 | 10 |
| 55111 00 007 | Download | 6 | 1/2 | 9 | 20.5 | 22 | 9 | 21 | 12 | 10 |
| 55111 00 008 | Download | 8 | 1/8 | 5,5 | 22 | 18,5 | 10 | 13 | 14 | 10 |
| 55111 00 009 | Download | 8 | 1/4 | 7 | 22 | 20 | 10 | 15 | 14 | 10 |
| 55111 00 010 | Download | 8 | 3/8 | 7,5 | 22 | 20,5 | 10 | 17 | 14 | 10 |
| 55111 00 011 | Download | 8 | 1/2 | 9 | 22 | 23 | 10 | 21 | 14 | 10 |
| 55111 00 012 | Download | 10 | 1/4 | 7 | 26,5 | 21,8 | 13 | 16 | 17 | 10 |
| 55111 00 013 | Download | 10 | 3/8 | 7,5 | 26,5 | 21,8 | 13 | 17 | 17 | 10 |
| 55111 00 014 | Download | 10 | 1/2 | 9 | 26,5 | 24,3 | 13 | 21 | 17 | 10 |
| 55111 00 015 | Download | 12 | 1/4 | 7 | 30 | 23,1 | 16 | 16 | 20 | 10 |
| 55111 00 016 | Download | 12 | 3/8 | 7,5 | 30 | 23,1 | 16 | 17 | 20 | 10 |
| 55111 00 017 | Download | 12 | 1/2 | 9 | 30 | 25,6 | 16 | 21 | 20 | 10 |
| 55111 00 018 | Download | 14 | 3/8 | 7,5 | 31 | 26,5 | 18 | 20 | 21 | 10 |
| 55111 00 019 | Download | 14 | 1/2 | 9 | 31 | 27 | 18 | 21 | 21 | 10 |
| 55111 00 020 | Download | 16 | 3/8 | 7,5 | 32,8 | 33,8 | 20 | 22 | 24 | 10 |
| 55111 00 021 | Download | 16 | 1/2 | 9 | 32,8 | 34,8 | 20 | 22 | 24 | 10 |
