55106

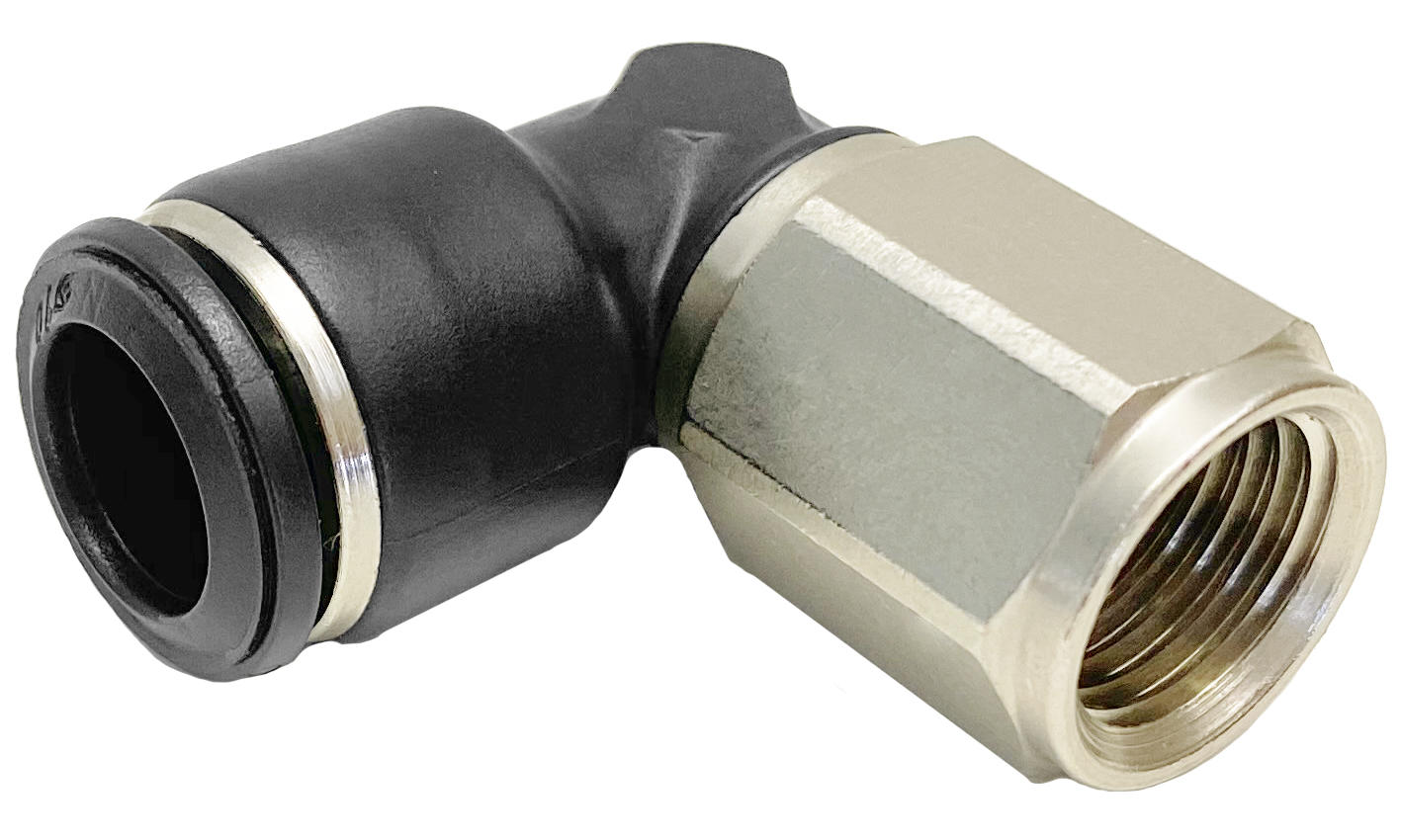

ORIENTING ELBOW FEMALE ADAPTOR (PARALLEL)
Technical characteristics / catalogAignep Scan Labels Certifications

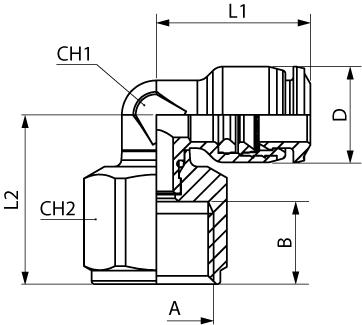

| Code | Draw | Tube | A | B | L1 | L2 | CH1 | CH2 | D | Bag |
|---|---|---|---|---|---|---|---|---|---|---|
| 55106 00 001 | Download | 4 | 1/8 | 8.5 | 16.5 | 19 | 7 | 13 | 10 | 10 |
| 55106 00 002 | Download | 4 | 1/4 | 11 | 16.5 | 22.5 | 7 | 16 | 10 | 10 |
| 55106 00 003 | Download | 6 | 1/8 | 8.5 | 20.5 | 20 | 9 | 13 | 12.5 | 10 |
| 55106 00 004 | Download | 6 | 1/4 | 11 | 20.5 | 23.5 | 9 | 16 | 12.5 | 10 |
| 55106 00 005 | Download | 8 | 1/8 | 8.5 | 22.5 | 21 | 10 | 13 | 14 | 10 |
| 55106 00 006 | Download | 8 | 1/4 | 11 | 22.5 | 23.5 | 10 | 16 | 14 | 10 |
| 55106 00 007 | Download | 8 | 3/8 | 12 | 22.5 | 24.5 | 10 | 19 | 14 | 10 |
| 55106 00 008 | Download | 10 | 1/4 | 11 | 26.5 | 27 | 13 | 16 | 17 | 10 |
| 55106 00 009 | Download | 10 | 3/8 | 12 | 26.5 | 27 | 13 | 19 | 17 | 10 |
