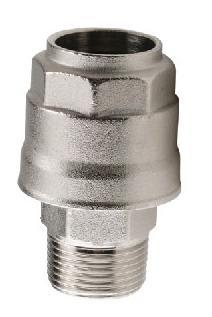

STRAIGHT MALE ADAPTOR
Technical characteristics / catalogFile BIM Aignep Scan Labels Instructions Certifications

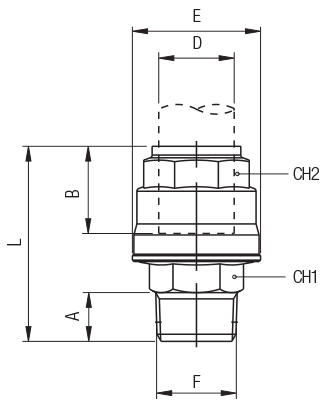

| Code | Draw | D | F | A | B | E | L | CH1 | CH2 | * | Bag |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 90010 00 001 | Download | 20 | 1/2 | 14 | 31,5 | 34,5 | 56 | 22 | 30 | 5 | |
| 90010 00 009 | Download | 20 | 3/4 | 16,5 | 31,5 | 34,5 | 61 | 22 | 30 | 5 | |
| 90010 00 011 | Download | 25 | 1/2 | 14 | 38,5 | 42,5 | 65 | 27 | 35 | 5 | |
| 90010 00 002 | Download | 25 | 3/4 | 16,5 | 38,5 | 42,5 | 66 | 27 | 35 | 5 | |
| 90010 00 010 | Download | 25 | 1" | 19 | 38,5 | 42,5 | 70.5 | 27 | 35 | 5 | |
| 90010 00 003 | Download | 32 | 1" | 19 | 46 | 52 | 76.5 | 34 | 45 | 2 | |
| 90010 00 013 | Download | 40 | 1" | 19 | 52 | 63 | 86.5 | 45 | 55 | 2 | |
| 90010 00 004 | Download | 40 | 1" 1/4 | 21,5 | 52 | 63 | 89.5 | 45 | 55 | 2 | |
| 90010 00 007 | Download | 40 | 1" 1/2 | 21,5 | 52 | 63 | 92 | 50 | 55 | 2 | |
| 90010 00 014 | Download | 50 | 1" | 19 | 63,5 | 73 | 102.5 | 60 | 65 | 2 | |
| 90010 00 005 | 50 | 1" 1/2 | 21,5 | 63,5 | 73 | 105 | 50 | 65 | 2 | ||
| 90010 00 012 | 50 | 2" | 24 | 63,5 | 73 | 111 | 60 | 65 | 2 | ||
| 90010 00 014 A | Download | 50 | 1" | 19 | 58,5 | 84 | 110,5 | 50 | 72 | Aluminium | 2 |
| 90010 00 005 A | Download | 50 | 1" 1/2 | 21,5 | 58,5 | 84 | 112,5 | 50 | 72 | Aluminium | 2 |
| 90010 00 012 A | Download | 50 | 2" | 24 | 58,5 | 84 | 115,5 | 50 | 72 | Aluminium | 2 |
| 90010 00 006 A | Download | 63 | 2" | 24 | 57,5 | 94 | 109,5 | 65 | 75 | Aluminium | 2 |
| 90010 00 008 A | Download | 63 | 2" 1/2 | 24 | 57,5 | 94 | 106,5 | 75 | 75 | Aluminium | 2 |
