Air Pipeline "INFINITY" Series

90030

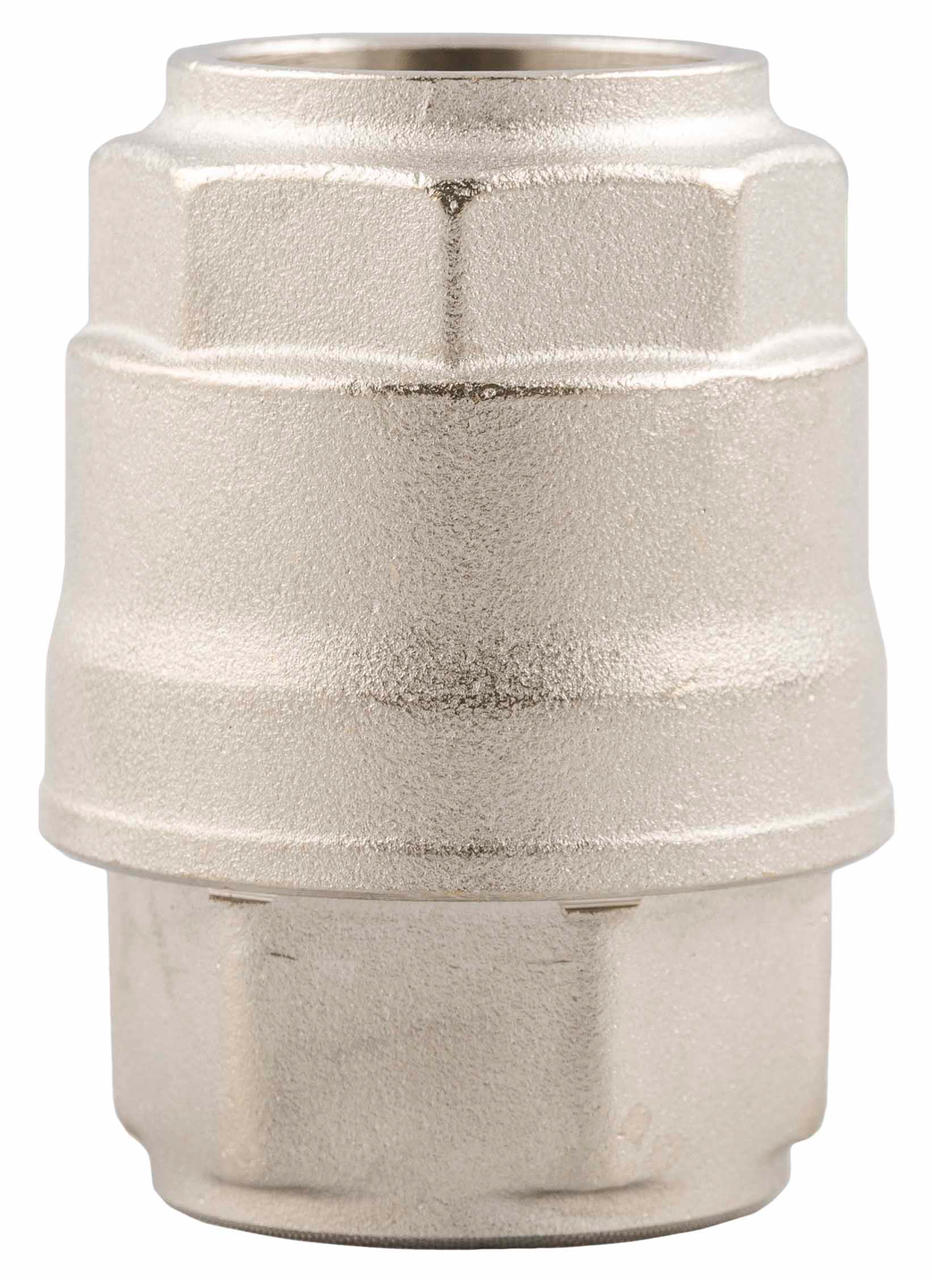

STRAIGHT FEMALE ADAPTOR

Technical characteristics / catalog File BIM Aignep Scan Labels Instructions Certifications

STRAIGHT FEMALE ADAPTOR

STRAIGHT FEMALE ADAPTOR

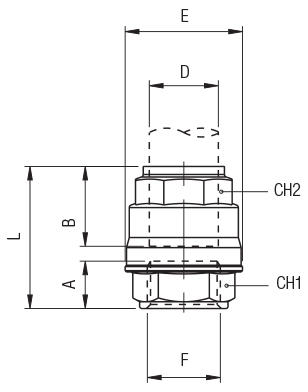

Code			Draw	D	F	A	B	E	L	CH1	CH2	Bag
90030 00 001			Download	20	1/2	15	31,5	34,5	49	24	30	5
90030 00 002			Download	25	3/4	16,5	38,5	42,5	56.5	32	35	5
90030 00 003			Download	32	1"	19	46	52	66.5	38	45	2
90030 00 004			Download	40	1" 1/4	22	52	63	76	50	55	2
90030 00 006			Download	63	2"	22	75,5	92	99.5	65	70	2

Code	Draw	D	F	A	B	E	L	CH1	CH2	Bag
90030 00 001	Download	20	1/2	15	31,5	34,5	49	24	30	5
90030 00 002	Download	25	3/4	16,5	38,5	42,5	56.5	32	35	5
90030 00 003	Download	32	1"	19	46	52	66.5	38	45	2
90030 00 004	Download	40	1" 1/4	22	52	63	76	50	55	2
90030 00 006	Download	63	2"	22	75,5	92	99.5	65	70	2
