Air Pipeline "INFINITY" Series

>90040
90040

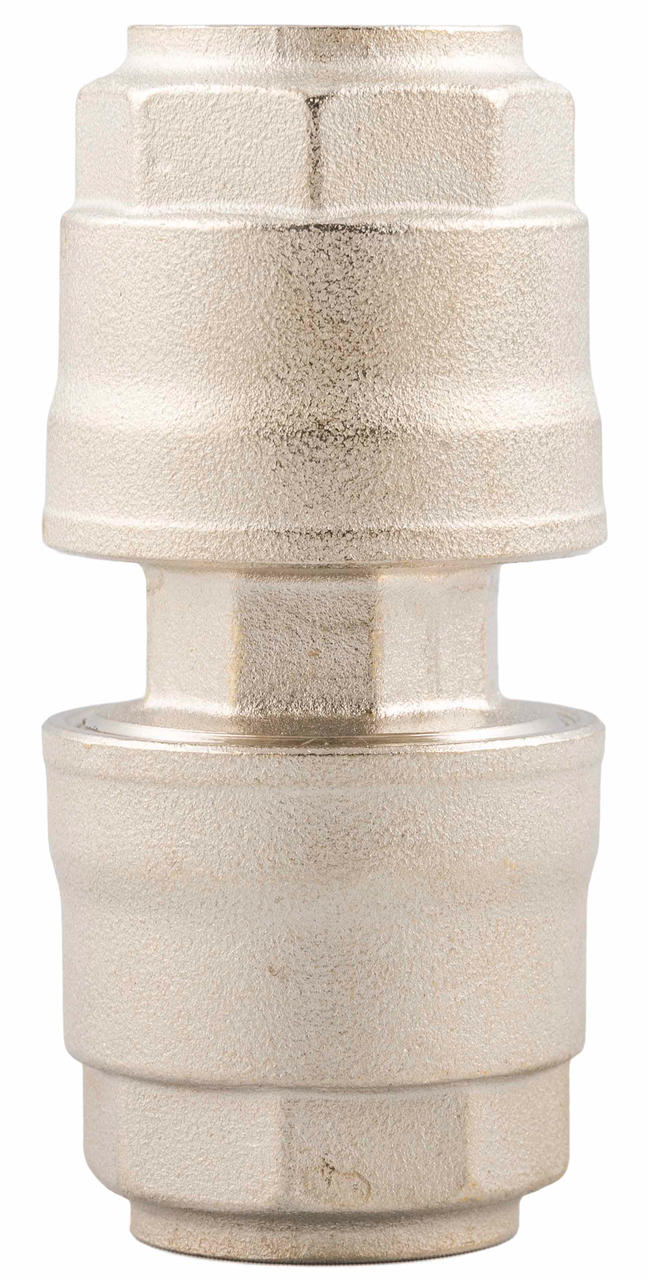

STRAIGHT CONNECTOR

Technical characteristics / catalogFile BIM Aignep Scan Labels Instructions Certifications
STRAIGHT CONNECTOR
STRAIGHT CONNECTOR

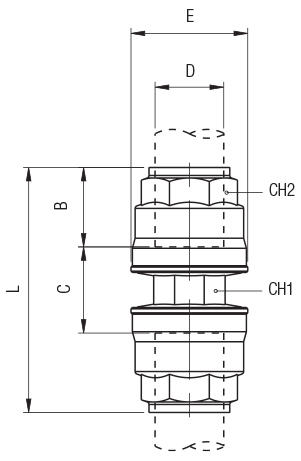

Code  Draw D B C E L CH1 CH2 * Bag
90040 00 001     Download 20 31,5 14.5 34,5 76.5 21 30 2
90040 00 002     Download 25 38,5 13.5 42,5 90.5 26 35 2
90040 00 003     Download 32 46 14.5 52 106.5 32 45 2
90040 00 004     Download 40 52 21 63 125 41 55 2
90040 00 005 A     Download 50 58,5 59 84 175 59 72 Aluminium 2
90040 00 006 A     Download 63 57,5 44 94 159 73 75 Aluminium 1
Code Draw D B C E L CH1 CH2 * Bag
90040 00 001 Download 20 31,5 14.5 34,5 76.5 21 30 2
90040 00 002 Download 25 38,5 13.5 42,5 90.5 26 35 2
90040 00 003 Download 32 46 14.5 52 106.5 32 45 2
90040 00 004 Download 40 52 21 63 125 41 55 2
90040 00 005 A Download 50 58,5 59 84 175 59 72 Aluminium 2
90040 00 006 A Download 63 57,5 44 94 159 73 75 Aluminium 1
