Air Pipeline "INFINITY">

Air Pipeline "INFINITY" Series

>90726
90726

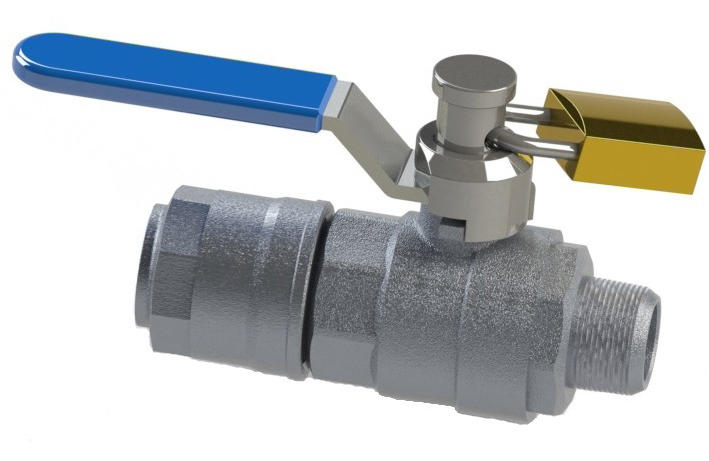

MALE-TUBE BALL VALVE WITH PADLOCK NPTF

Technical characteristics / catalogFile BIM Aignep Scan Labels Instructions Certifications
MALE-TUBE BALL VALVE WITH PADLOCK NPTF
MALE-TUBE BALL VALVE WITH PADLOCK NPTF

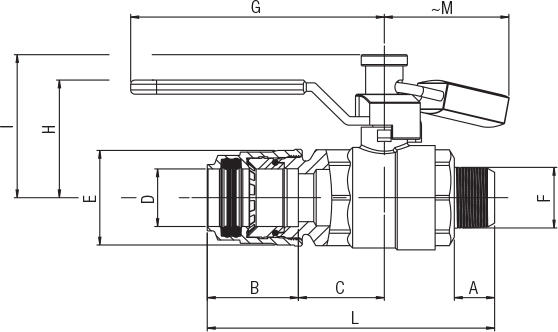

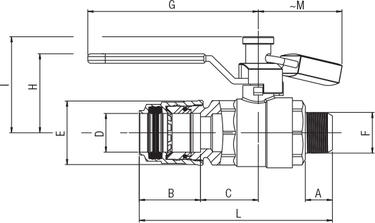

Code  Draw D F (NPTF) D.N. A B C E L CH1 CH2 G H I M Bag
90726 000 01     Download 20 1/2 15 17 31,5 29.3 34.5 100.8 32 30 88 42 50,7 45 2
90726 000 02     Download 25 3/4 20 17,5 38,5 30.8 42.5 119.3 41 35 106 47,5 59,5 45 2
Code Draw D F (NPTF) D.N. A B C E L CH1 CH2 G H I M Bag
90726 000 01 Download 20 1/2 15 17 31,5 29.3 34.5 100.8 32 30 88 42 50,7 45 2
90726 000 02 Download 25 3/4 20 17,5 38,5 30.8 42.5 119.3 41 35 106 47,5 59,5 45 2
