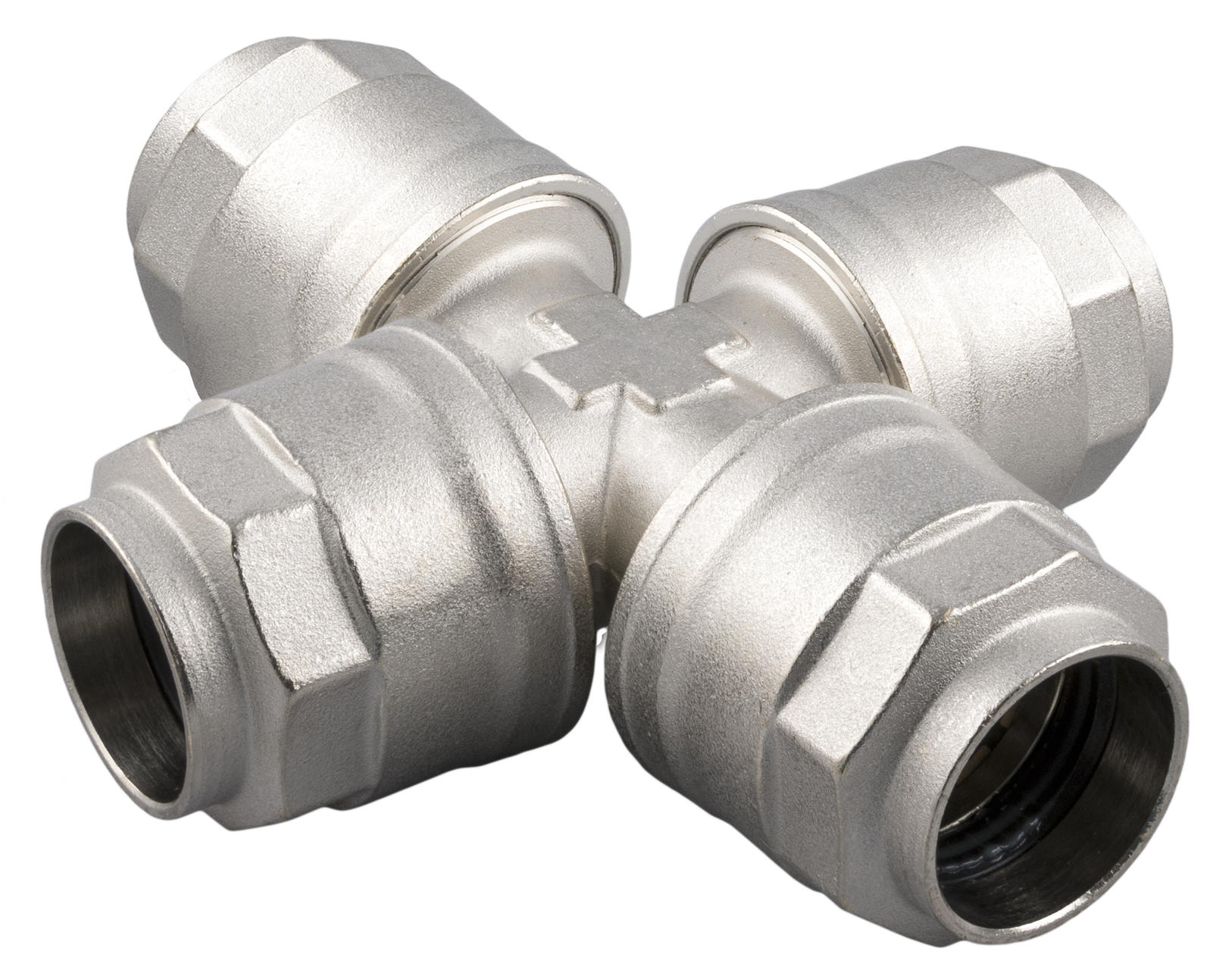

90300

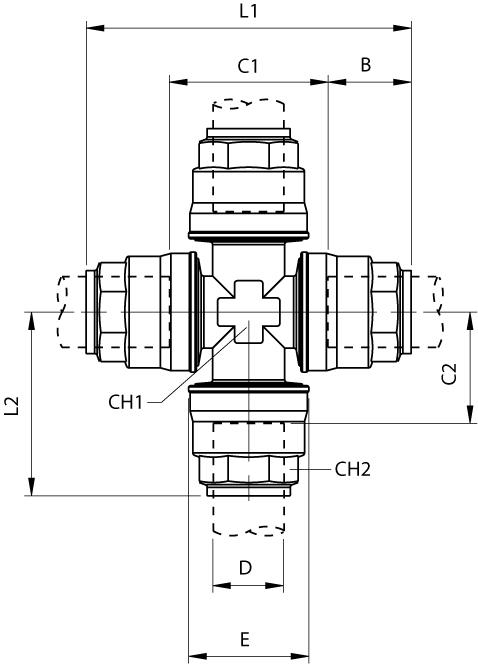

Code | Draw | D | E | B | C1 | C2 | L1 | L2 | CH1 | CH2 | Bag | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
90300 00 001 | Download | 20 | 34,5 | 31.5 | 34.5 | 22.5 | 98 | 54.5 | 21 | 30 | 3 | ||
90300 00 002 | Download | 25 | 42,5 | 38.5 | 37.5 | 26 | 113.5 | 65 | 26 | 35 | 3 | ||
90300 00 003 | Download | 32 | 52 | 46 | 46.5 | 31.5 | 138.5 | 77 | 34 | 45 | 2 |
Code | Draw | D | E | B | C1 | C2 | L1 | L2 | CH1 | CH2 | Bag |
---|---|---|---|---|---|---|---|---|---|---|---|
90300 00 001 | Download | 20 | 34,5 | 31.5 | 34.5 | 22.5 | 98 | 54.5 | 21 | 30 | 3 |
90300 00 002 | Download | 25 | 42,5 | 38.5 | 37.5 | 26 | 113.5 | 65 | 26 | 35 | 3 |
90300 00 003 | Download | 32 | 52 | 46 | 46.5 | 31.5 | 138.5 | 77 | 34 | 45 | 2 |
