Air Pipeline "INFINITY" Series

90260

FITTING WITH CONDENSE EXHAUST INCORPORATED

Technical characteristics / catalog File BIM Aignep Scan Labels Instructions Certifications

FITTING WITH CONDENSE EXHAUST INCORPORATED

FITTING WITH CONDENSE EXHAUST INCORPORATED

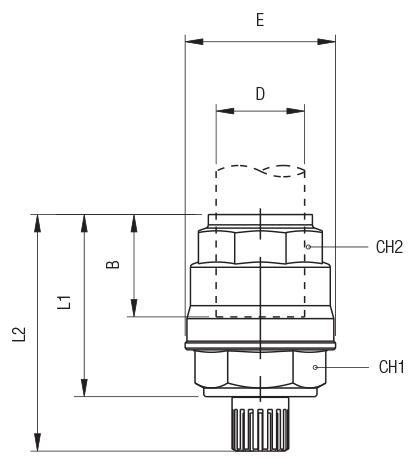

Code			Draw	D	B	E	L1	L2	CH1	CH2	Bag
90260 00 001			Download	20	36	34,5	52.5	67	32	30	2
90260 00 003			Download	32	46	52	67.5	82	38	45	2
90260 00 005			Download	50	63,5	73	86.5	101	55	65	1
90260 00 006				63	59	92	84	98.5	65	70	1

Code	Draw	D	B	E	L1	L2	CH1	CH2	Bag
90260 00 001	Download	20	36	34,5	52.5	67	32	30	2
90260 00 003	Download	32	46	52	67.5	82	38	45	2
90260 00 005	Download	50	63,5	73	86.5	101	55	65	1
90260 00 006		63	59	92	84	98.5	65	70	1
