FITTING FOR OUTLET

Technical characteristics / catalogFile BIM Aignep Scan Labels Instructions Certifications
FITTING FOR OUTLET
FITTING FOR OUTLET

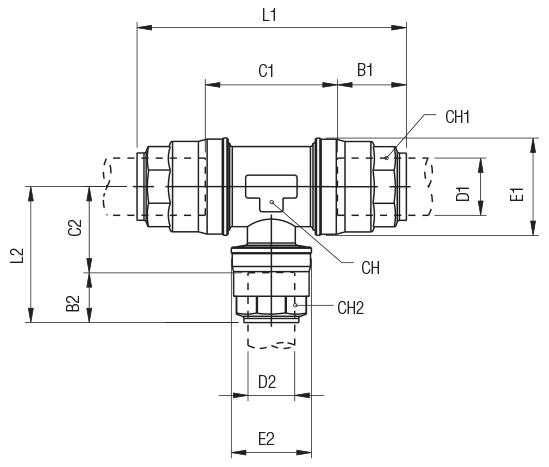

Code  Draw D1 D2 B1 B2 C1 C2 E1 E2 L1 L2 CH CH1 CH2 * Bag
90235 00 013     Download 20 20 31.5 31.5 48 22.5 34.5 34.5 109 54 28 30 30 3
90235 00 001     Download 25 20 38 31.5 45.5 27.5 42.5 34.5 121.5 59 35 35 30 3
90235 00 002     Download 32 20 46 31.5 54.5 31.5 52 34.5 146.5 63 45 45 30 2
90235 00 003     Download 32 25 46 38 54.5 31.5 52 42.5 146.5 70 45 45 35 2
90235 00 004     Download 40 20 52.5 31.5 60 34.5 63 34.5 165.5 66 55 55 30 1
90235 00 005     Download 40 25 52.5 38 60 34.5 63 42.5 165.5 73 55 55 35 1
90235 00 007     Download 50 20 63.5 31.5 73.5 41.5 73 34.5 201 73 65 65 30 1
90235 00 008     Download 50 25 63,5 38,5 73,5 41 73 42,5 201 80 65 65 35 1
90235 00 009     Download 50 32 63,5 46 73,5 41 73 52 201 87,5 65 65 45 1
90235 00 007 A     Download 50 20 58.5 33 105 57 84 40 222 90 69 72 30 Aluminium 1
90235 00 008 A     Download 50 25 58.5 41 105 57 84 49 222 98 69 72 35 Aluminium 1
90235 00 009 A     Download 50 32 58.5 45 105 57 84 58 222 102 69 72 45 Aluminium 1
90235 00 010 A     Download 63 20 57.5 33 87.5 64.5 94 40 205.5 97 80 75 30 Aluminium 1
90235 00 011 A     Download 63 25 57.5 41 87.5 64.5 94 49 205.5 105 80 75 35 Aluminium 1
90235 00 012 A     Download 63 32 57.5 45 87.5 64.5 94 58 205.5 112 80 75 45 Aluminium 1
Code Draw D1 D2 B1 B2 C1 C2 E1 E2 L1 L2 CH CH1 CH2 * Bag
90235 00 013 Download 20 20 31.5 31.5 48 22.5 34.5 34.5 109 54 28 30 30 3
90235 00 001 Download 25 20 38 31.5 45.5 27.5 42.5 34.5 121.5 59 35 35 30 3
90235 00 002 Download 32 20 46 31.5 54.5 31.5 52 34.5 146.5 63 45 45 30 2
90235 00 003 Download 32 25 46 38 54.5 31.5 52 42.5 146.5 70 45 45 35 2
90235 00 004 Download 40 20 52.5 31.5 60 34.5 63 34.5 165.5 66 55 55 30 1
90235 00 005 Download 40 25 52.5 38 60 34.5 63 42.5 165.5 73 55 55 35 1
90235 00 007 Download 50 20 63.5 31.5 73.5 41.5 73 34.5 201 73 65 65 30 1
90235 00 008 Download 50 25 63,5 38,5 73,5 41 73 42,5 201 80 65 65 35 1
90235 00 009 Download 50 32 63,5 46 73,5 41 73 52 201 87,5 65 65 45 1
90235 00 007 A Download 50 20 58.5 33 105 57 84 40 222 90 69 72 30 Aluminium 1
90235 00 008 A Download 50 25 58.5 41 105 57 84 49 222 98 69 72 35 Aluminium 1
90235 00 009 A Download 50 32 58.5 45 105 57 84 58 222 102 69 72 45 Aluminium 1
90235 00 010 A Download 63 20 57.5 33 87.5 64.5 94 40 205.5 97 80 75 30 Aluminium 1
90235 00 011 A Download 63 25 57.5 41 87.5 64.5 94 49 205.5 105 80 75 35 Aluminium 1
90235 00 012 A Download 63 32 57.5 45 87.5 64.5 94 58 205.5 112 80 75 45 Aluminium 1
