90237

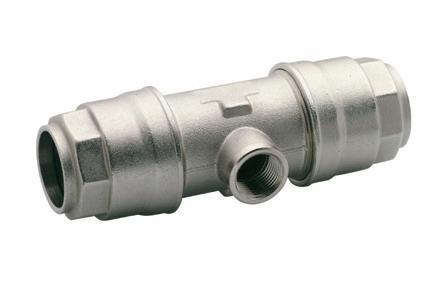

FEMALE FITTING FOR OUTLET
Technical characteristics / catalogFile BIM Aignep Scan Labels Instructions Certifications

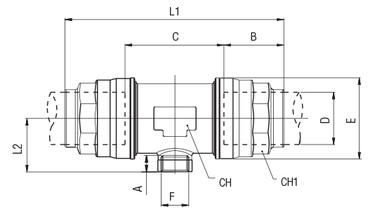

| Code | Draw | D | F (NPTF) | A | B | C | E | L1 | L2 | CH | CH1 | * | Bag |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90237 00 007 | Download | 20 | 1/2 | 13.5 | 31.5 | 48 | 34.5 | 109 | 25 | 28 | 30 | 3 | |
| 90237 00 017 A | Download | 63 | 1/2 | 13.5 | 57.5 | 88 | 94 | 203 | 53 | 80 | 75 | Aluminium | 3 |
| 90237 00 005 A | Download | 63 | 3/4 | 14 | 57.5 | 88 | 94 | 203 | 54 | 80 | 75 | Aluminium | 3 |
| 90237 00 018 A | Download | 63 | 1" | 17 | 57.5 | 88 | 94 | 203 | 56.5 | 80 | 75 | Aluminium | 2 |
